ETS2 and ATS User Manual
ETS2 & ATS
Quick Start
Getting started with EliteDrive hardware controller for ETS2 and ATS
The EliteDrive hardware controller is specifically designed for ETS2 and ATS, providing the following core features:
1. Function design based on game default hotkeys
2. Install communication patch
3. Configure game settings

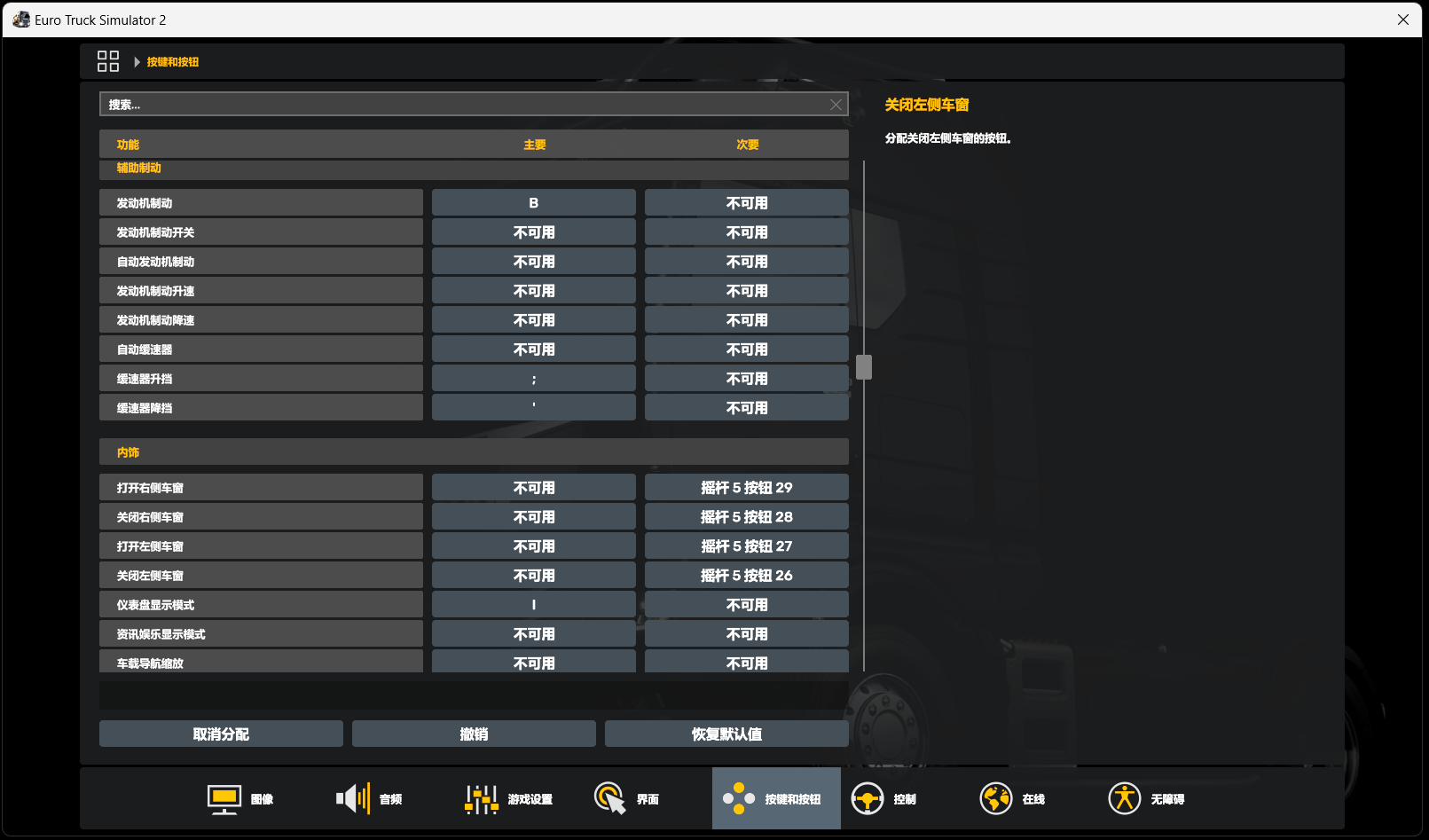

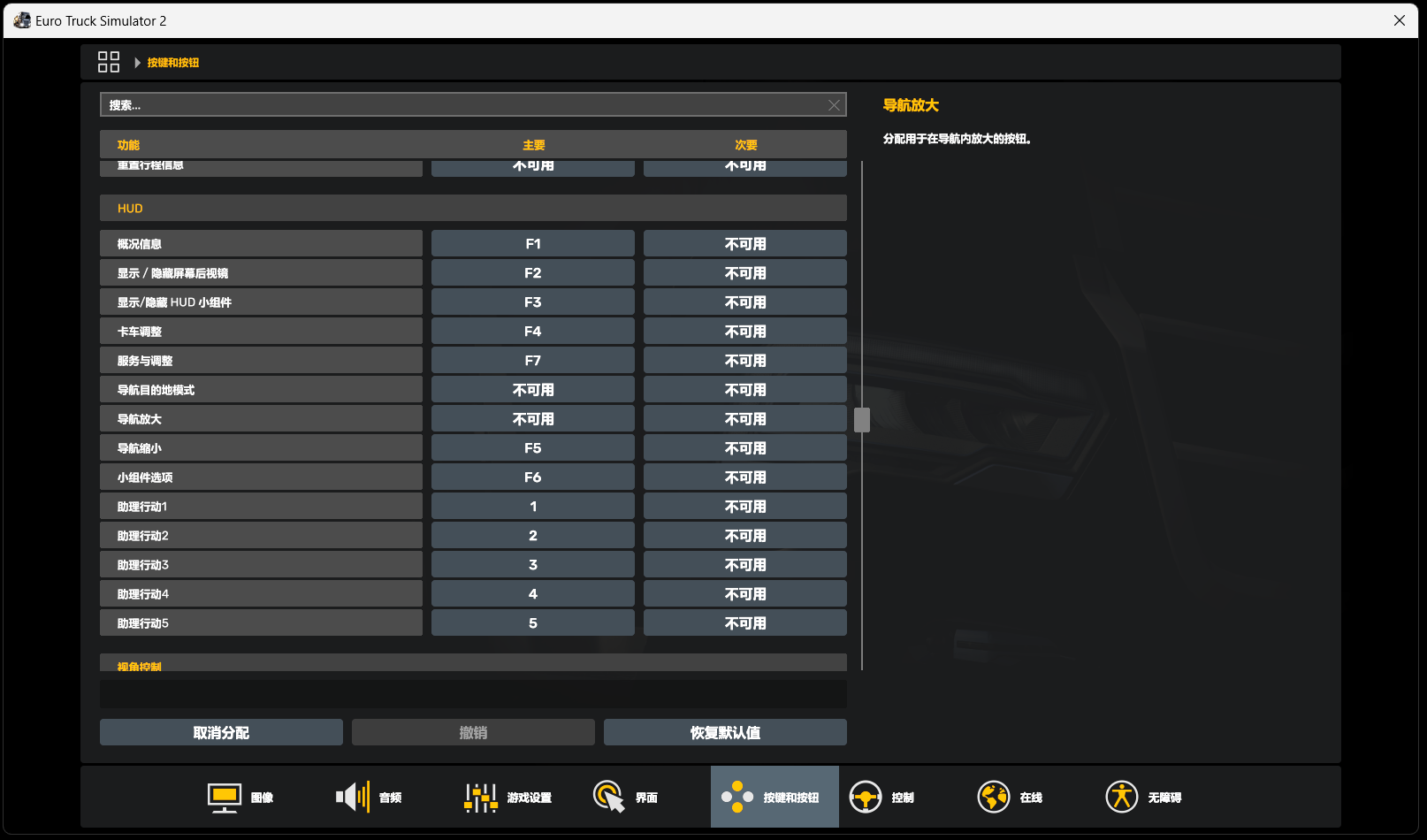

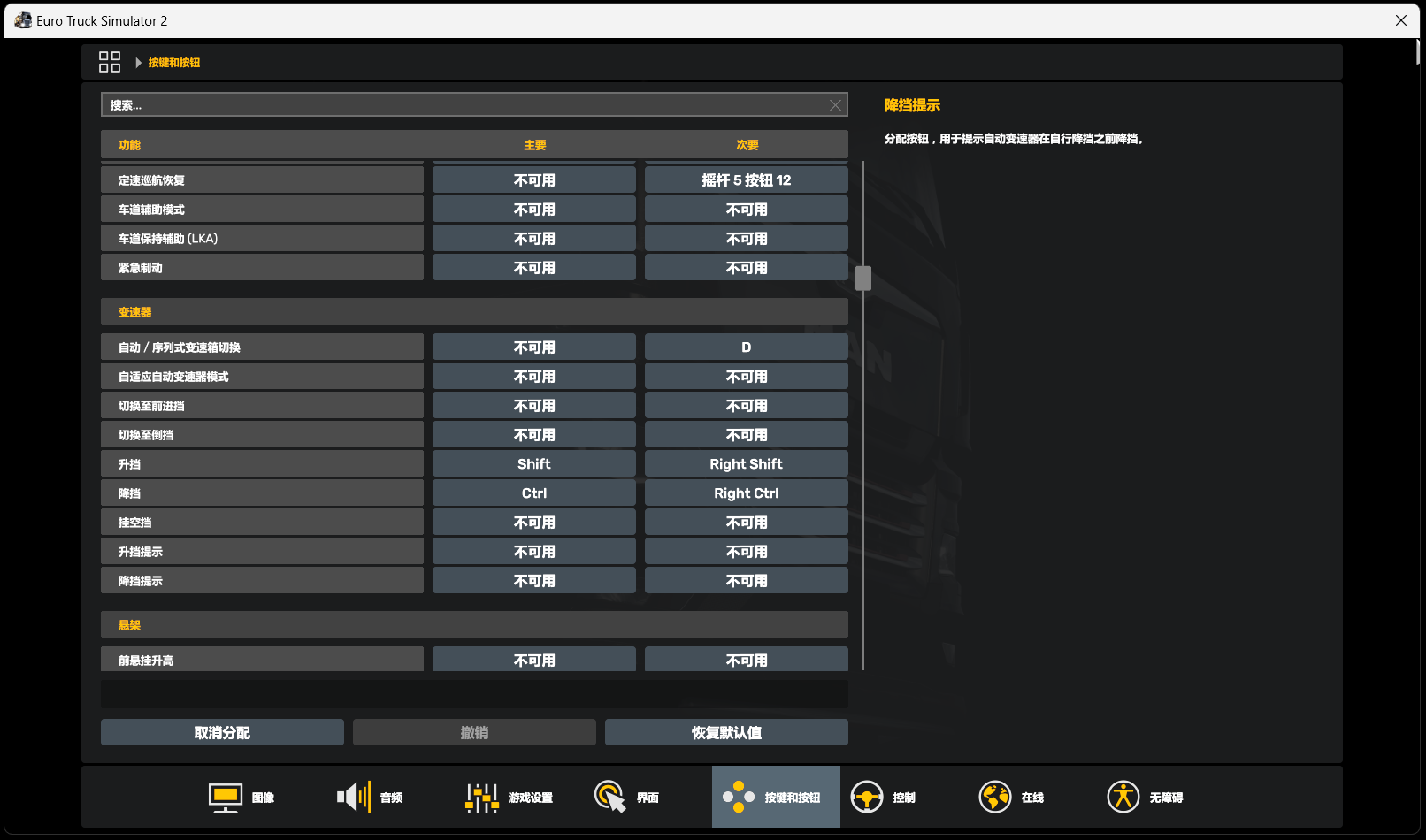

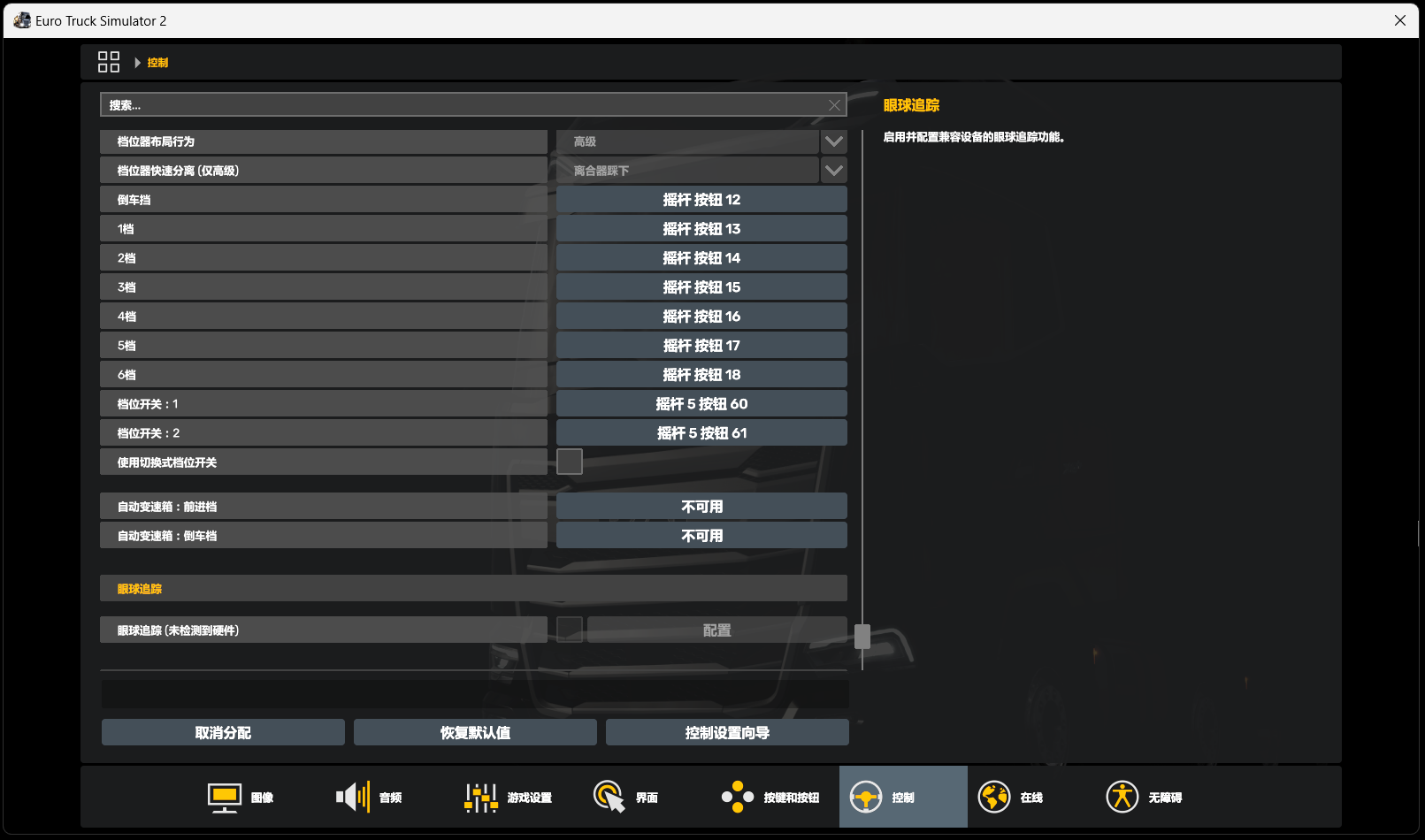

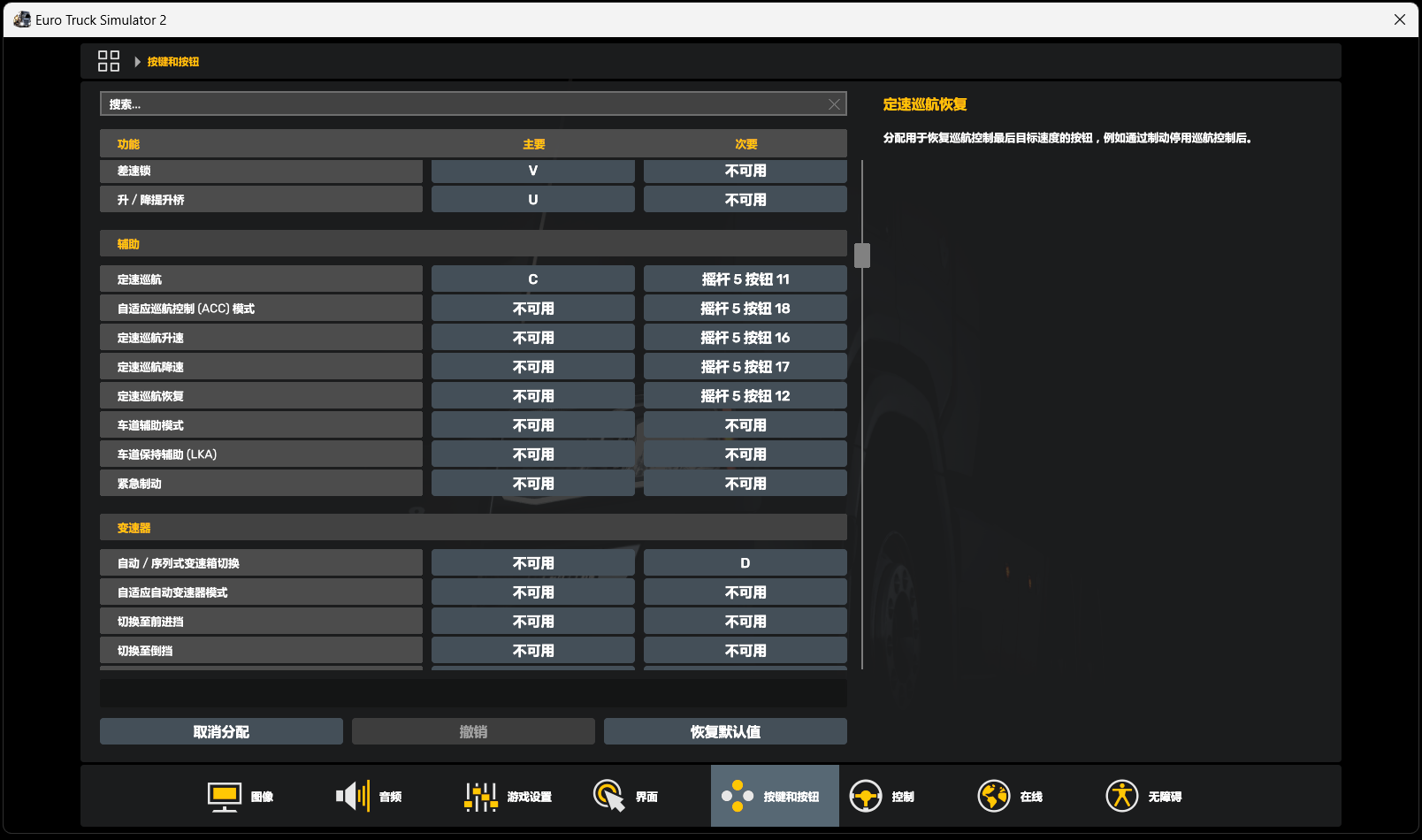

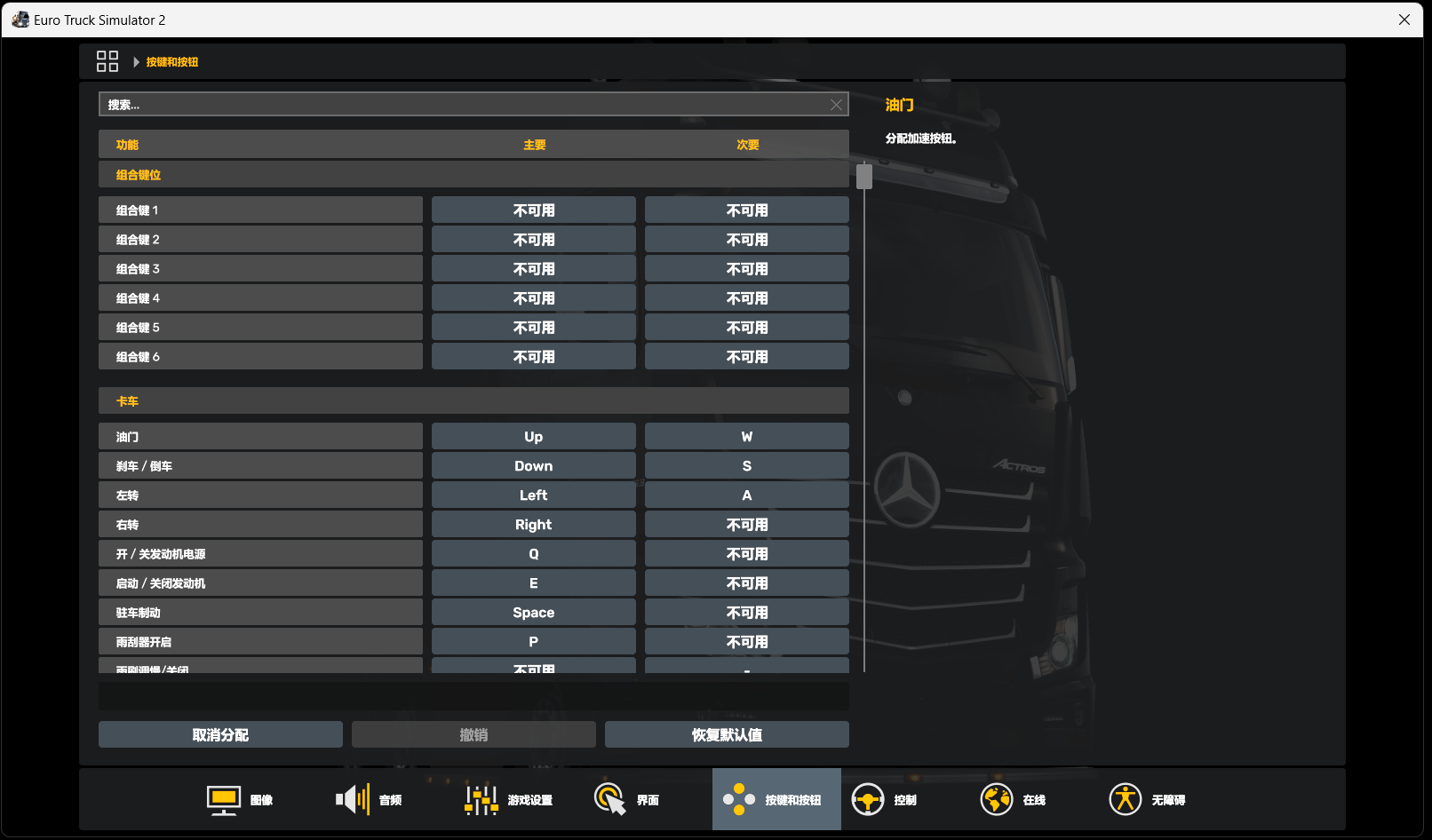

4. Bind hotkeys as required
1. Function design based on game default hotkeys
2. Install communication patch
3. Configure game settings
4. Bind hotkeys as required

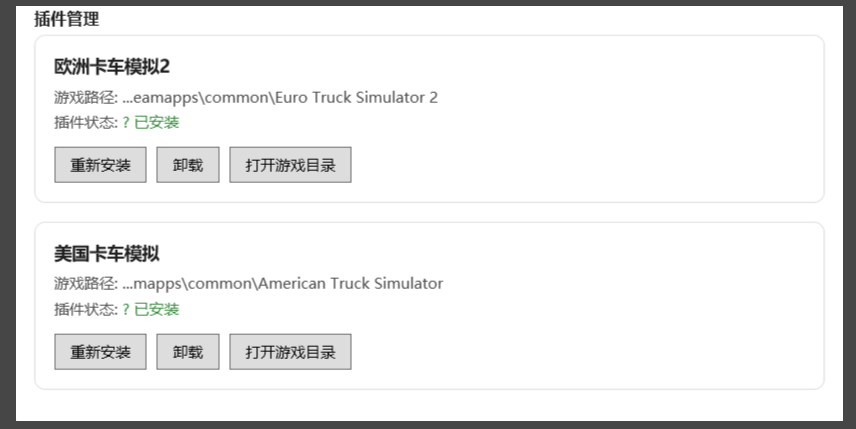

Communication Plugin Installation
Install SCS Telemetry plugin for bi-directional synchronization between hardware and game
Hardware Module Manuals
Click the buttons below to view detailed instructions for each hardware module
V8D-K Key Set
→
V8D-Q Air Brake Set
→
Black Hole Module
→

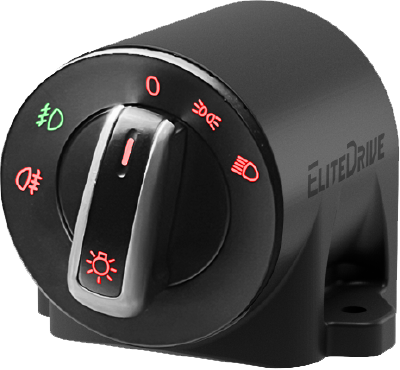

Headlight Module H Version
→

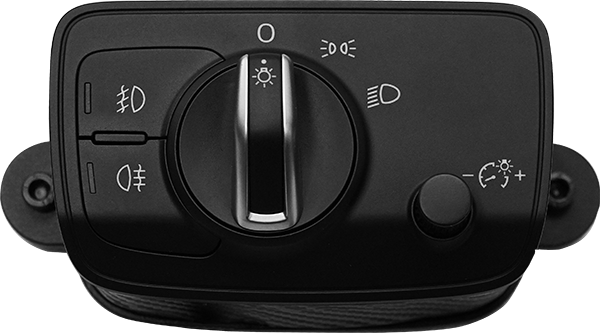

Headlight Module Q Version
→
Console Module
→
Glass Module
→

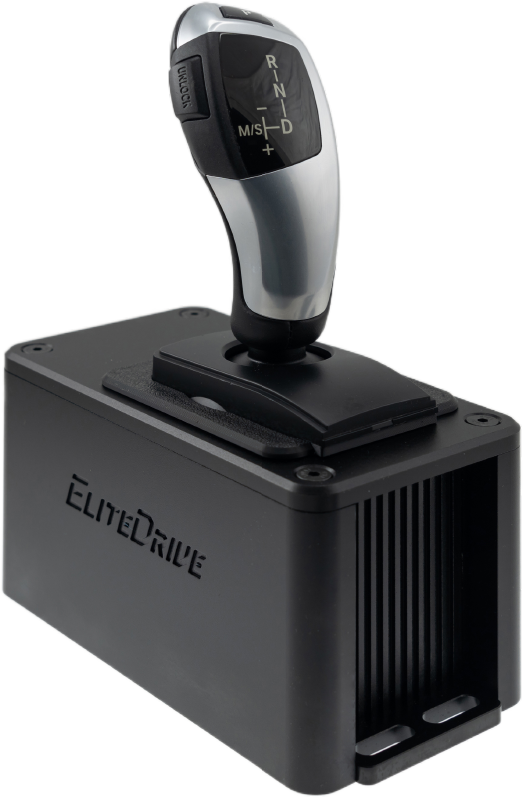

Shifter Module Manual
→
Air Brake Module Manual
→
Shifter Knob Module Manual
→
FAQ
Device not working properly
Check if the ETS2 and ATS communication plugins are installed in the driver's game settings
Cannot bind hotkeys

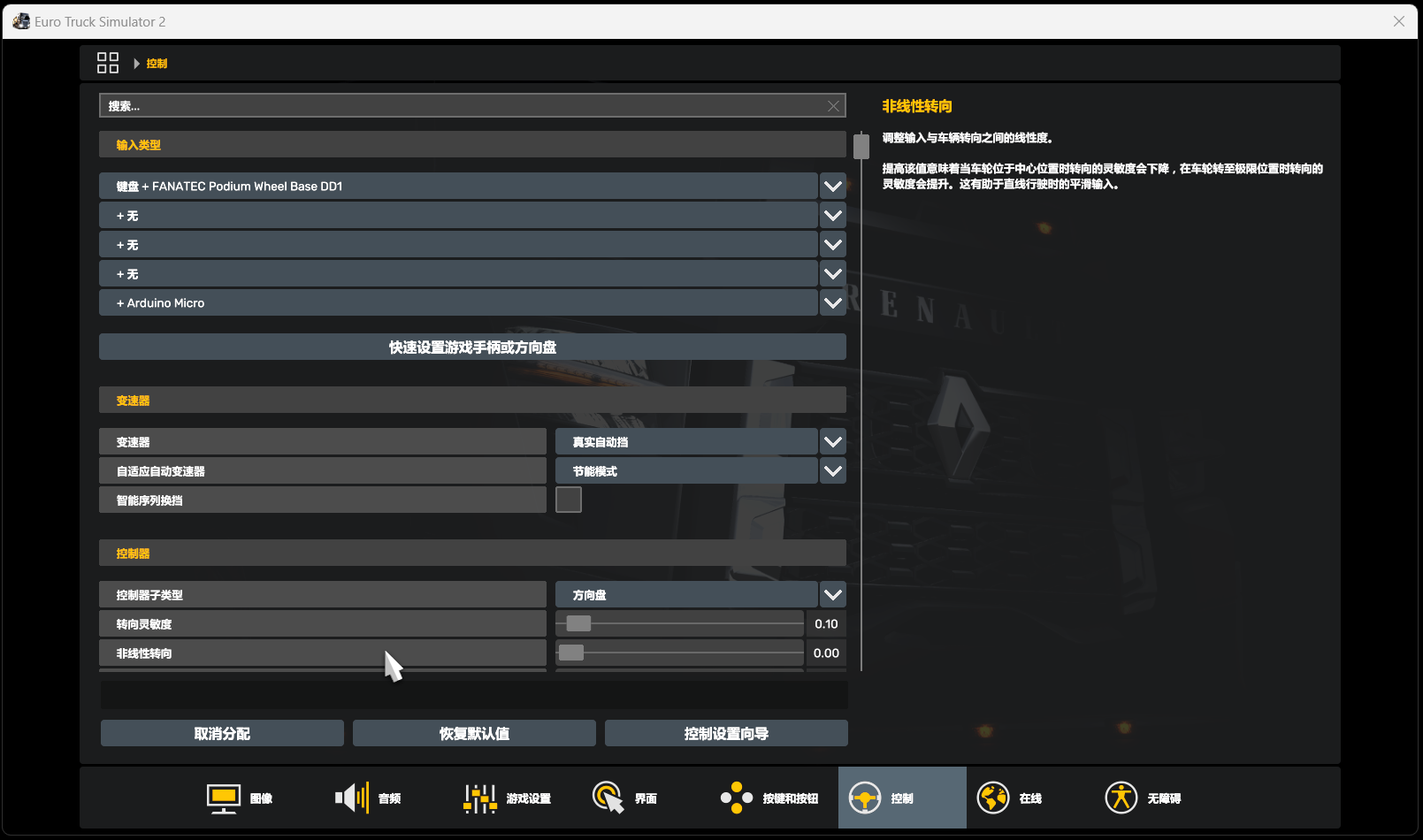

Need to add Arduino Micro device
No response when binding hotkeys with key module

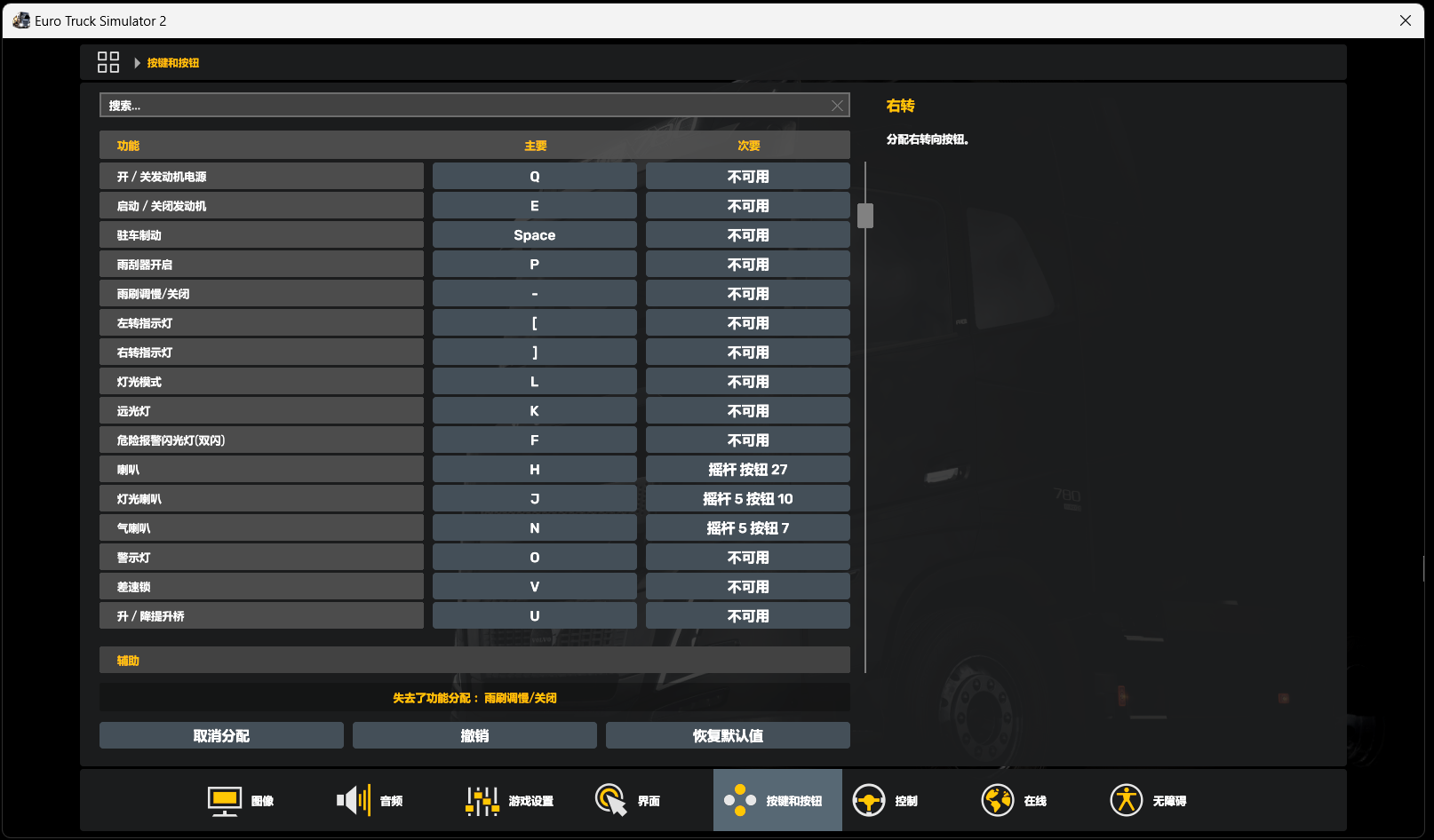

Bind Q and E keys using the keyboard, not with hardware
ETS2 wipers not working properly
The P and - hotkeys are not bound as required
Check game settings and uncheck rain sensor option
Check game settings and uncheck rain sensor option

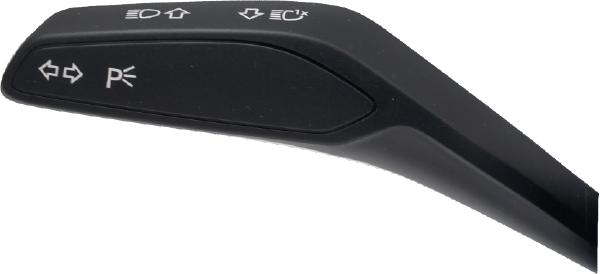

Turn signals not working properly
Check if turn signals are using default hotkeys [ and ]

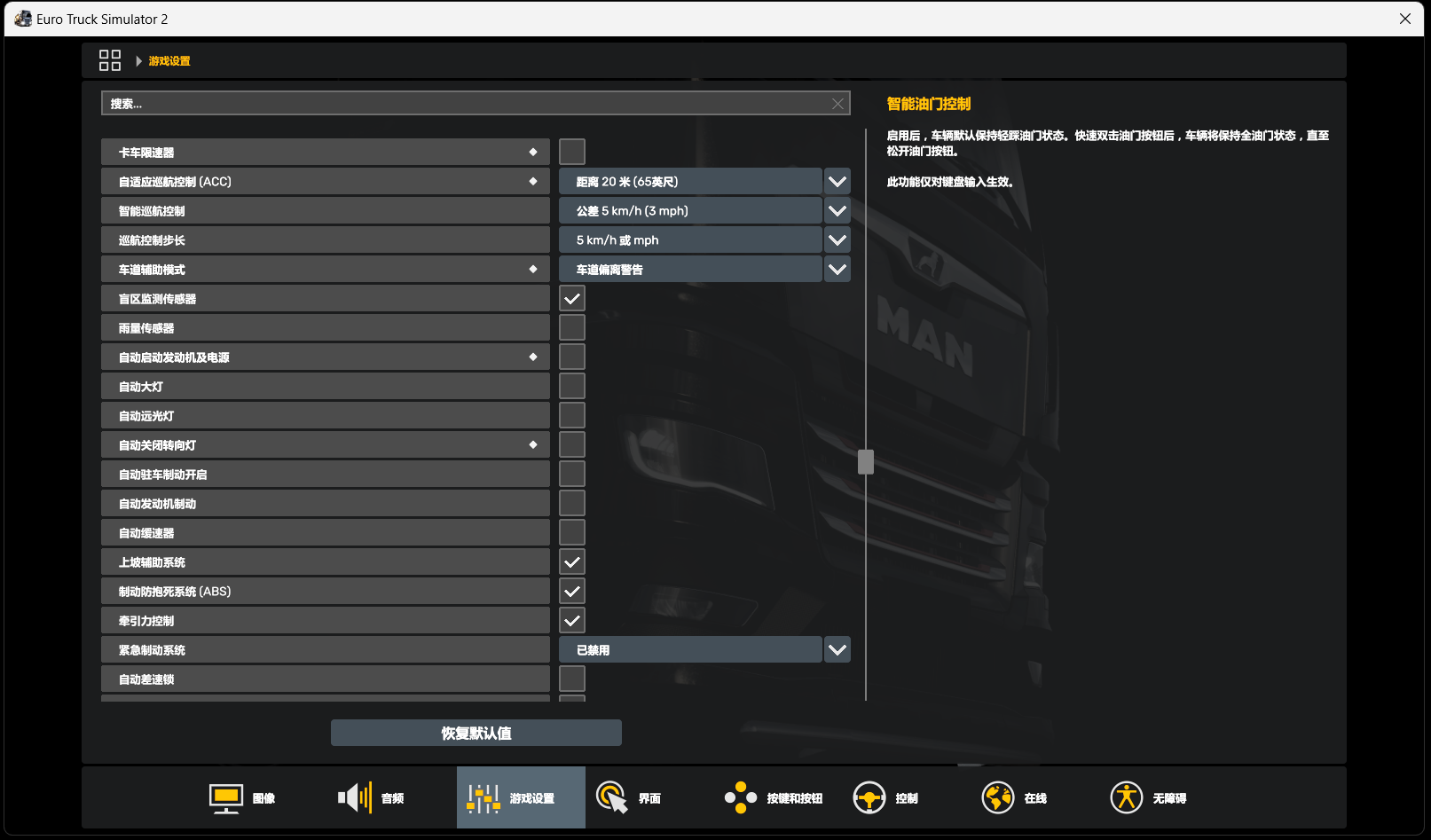

Check game settings and uncheck auto turn-off turn signals option
Check game settings and uncheck auto turn-off turn signals option
Key module not working in game
Check if Q and E keys are bound as required for the key module, and if "Use Key Module" is selected in the driver menu
Headlight module H version knob not working properly
Calibrate the lower right knob travel in system settings for Headlight Switch H version
Retarder not working properly
Check if using the game's default hotkeys
