V8D-Q Air Brake Set
ETS2 & ATS - Air Brake Control Box Module

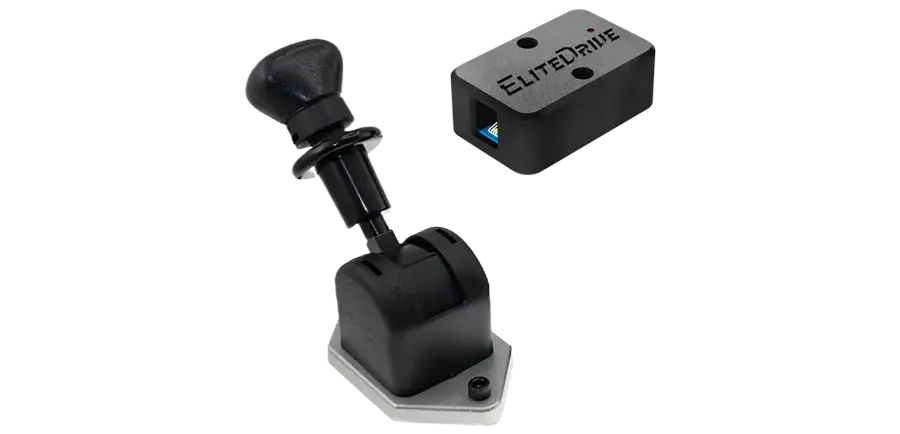

Module Overview
The V8D-Q air brake module is the most simplified model in the entire ecosystem, consisting of only a V8D-Q control box and air brake module. It supports EliteDrive driver and can automatically synchronize hardware status.
It has 2 mounting screws on the bottom for easy installation on aluminum profiles.
Suitable for use with other brands of equipment, adding realistic air brake control experience to your setup.
Can be upgraded later with price difference payment.

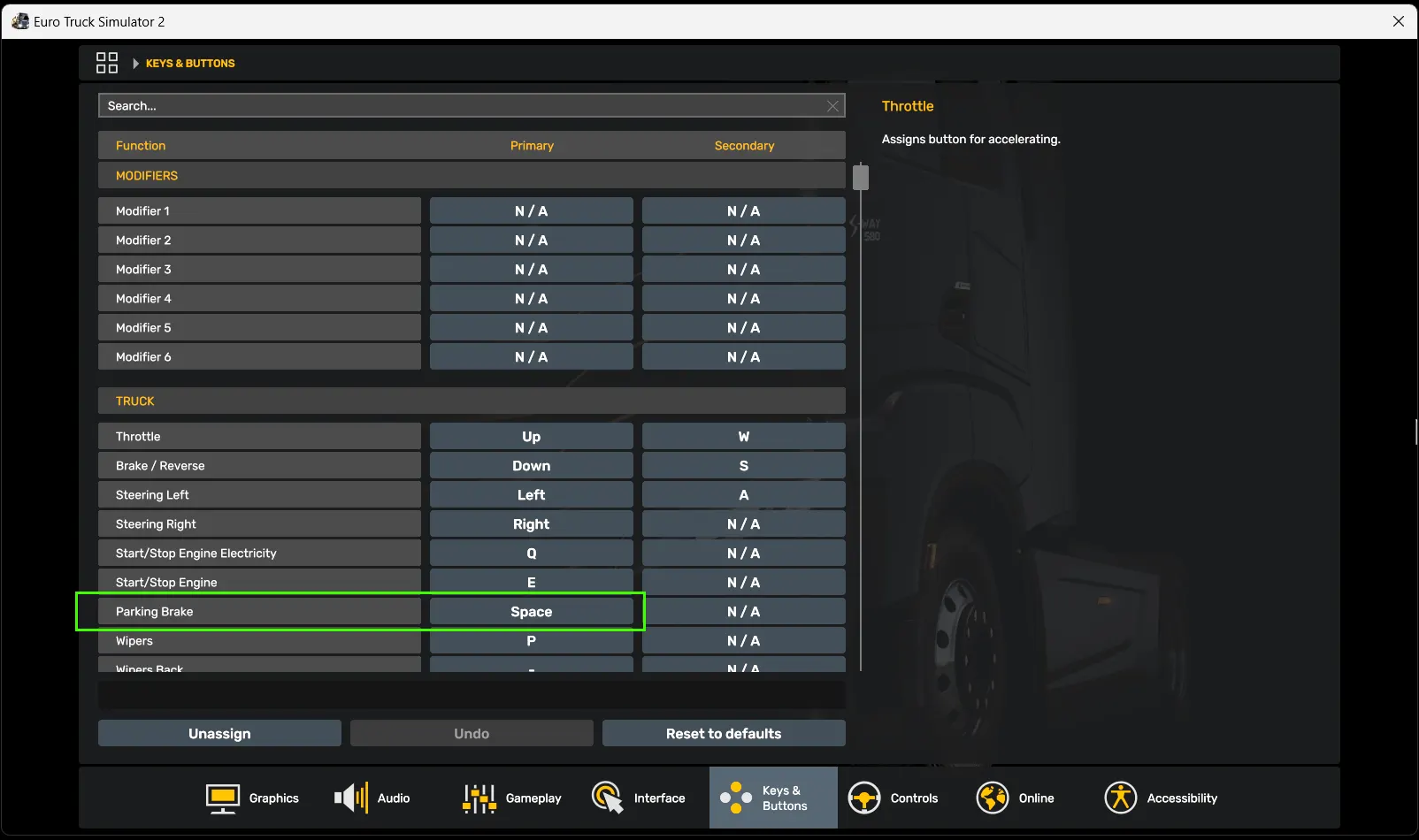

Key Binding
Parking brake uses the game's default spacebar shortcut

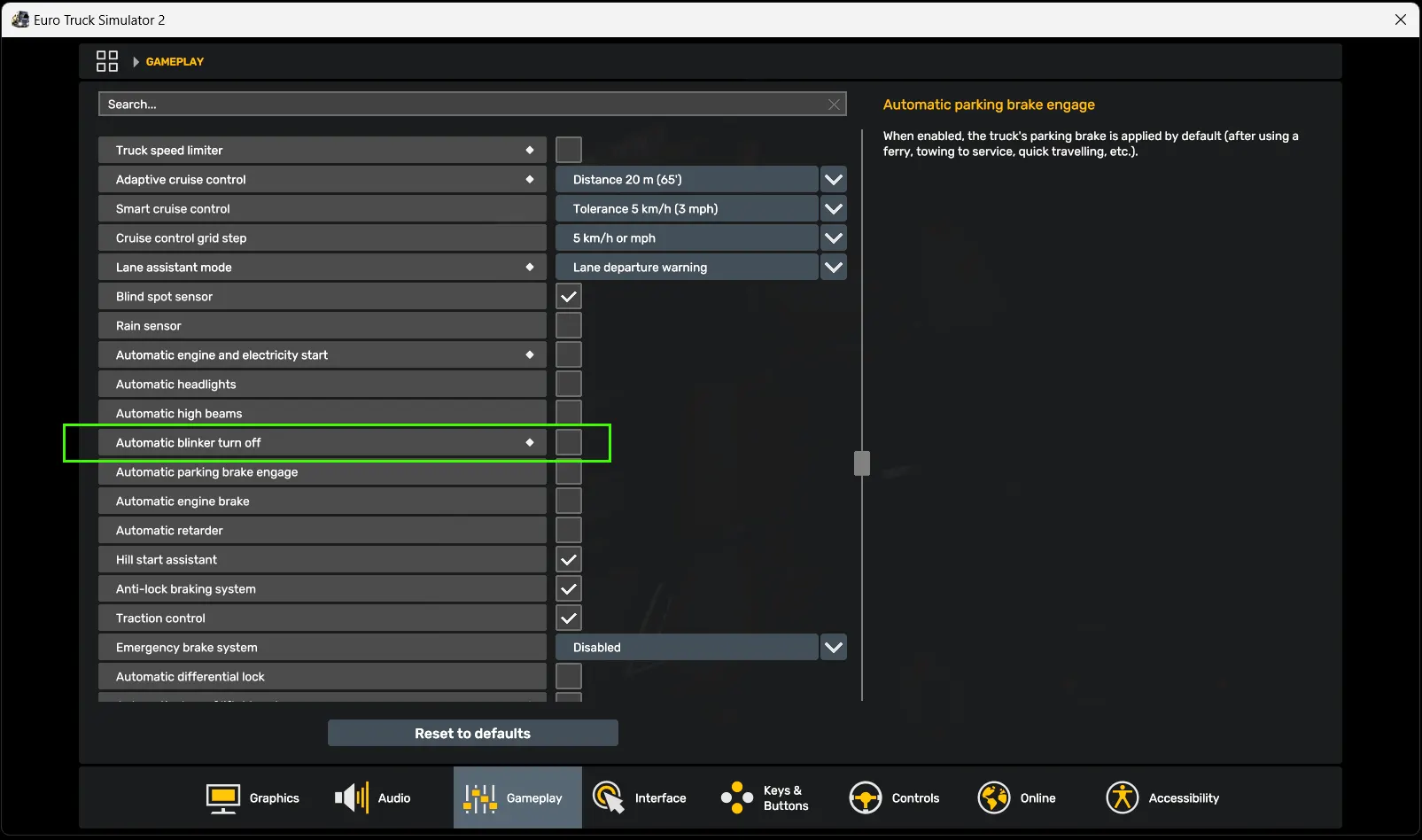

Game Settings
Please do not check this option in game settings
Connection Method
1. Connect the key module to the V8D-Q control box via RJ11 cable
2. Connect the control box to the computer using Micro USB data cable
3. EliteDrive driver must be installed
4. The driver will automatically detect the V8D-Q control box
5. The driver can automatically switch game working mode to adapt to different games.
6. The driver program must be running each time you use the air brake module (driver can be minimized)

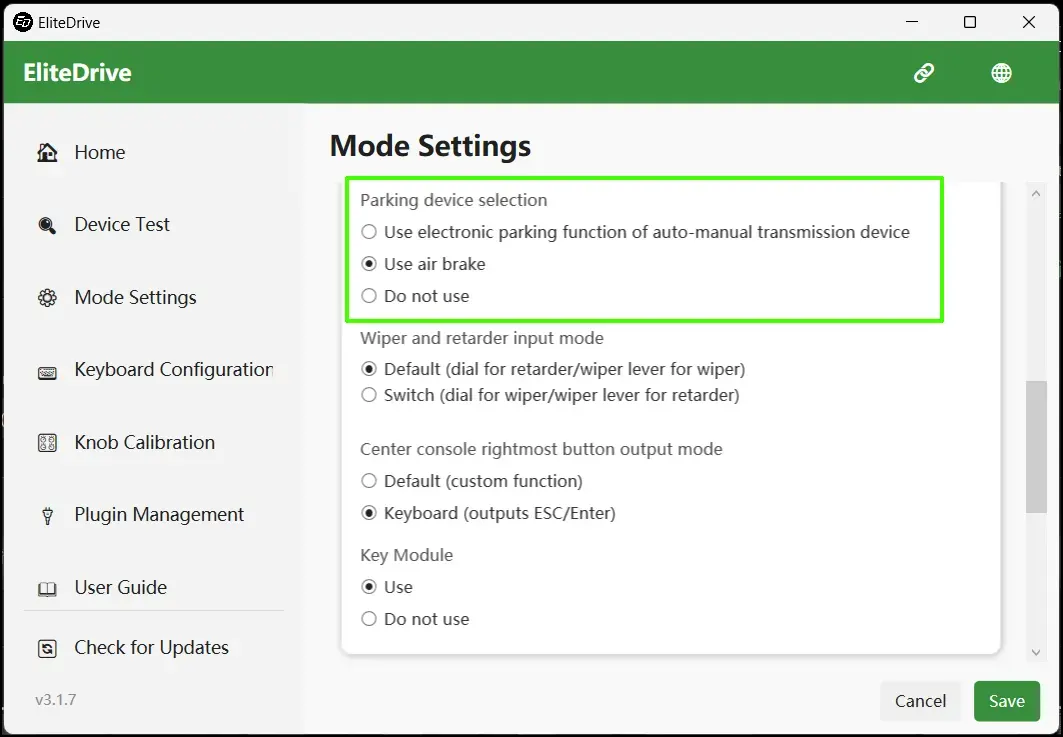

Usage Instructions
To use the air brake, select "Use Air Brake" in the driver's parking device settings
• Pull up handle - Lock parking brake, vehicle stops
• Q version air brake: Lift handle ring - Unlock parking brake, vehicle can move
• M version air brake: Pull handle head firmly to release from the slot - Unlock parking brake, vehicle can move
• H version air brake: Pull handle head firmly to release from the slot - Unlock parking brake, vehicle can move
