Air Brake Module Manual

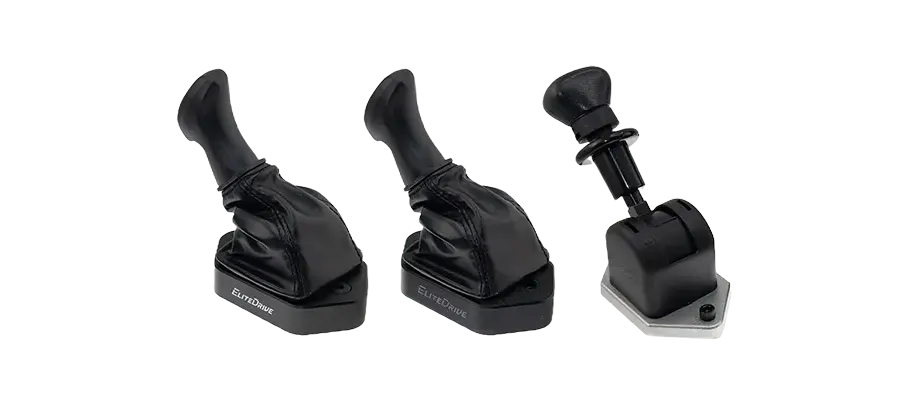

Module Overview

Our ecosystem has three types of air brake modules. They differ in design and craftsmanship, with slightly different operation methods, but share the same function - simulating parking brake control:

1. Air Brake H Version - Base and bottom cover use aluminum alloy CNC process.
2. Air Brake M Version - Base and bottom cover use high-precision 3D printing process.
3. Air Brake Q Version - Bottom cover uses high-precision 3D printing process.

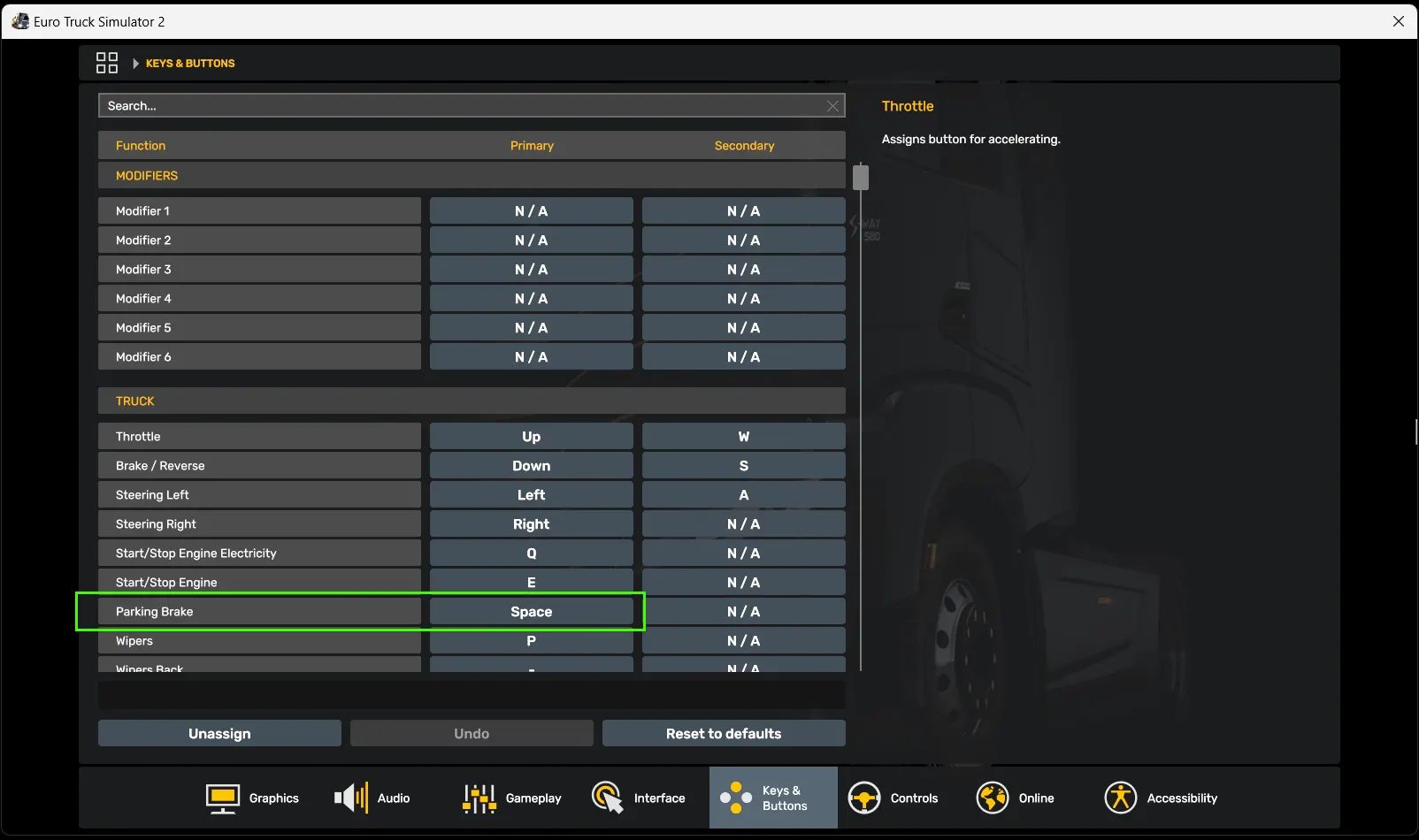

Key Binding

Parking brake uses the game's default spacebar shortcut

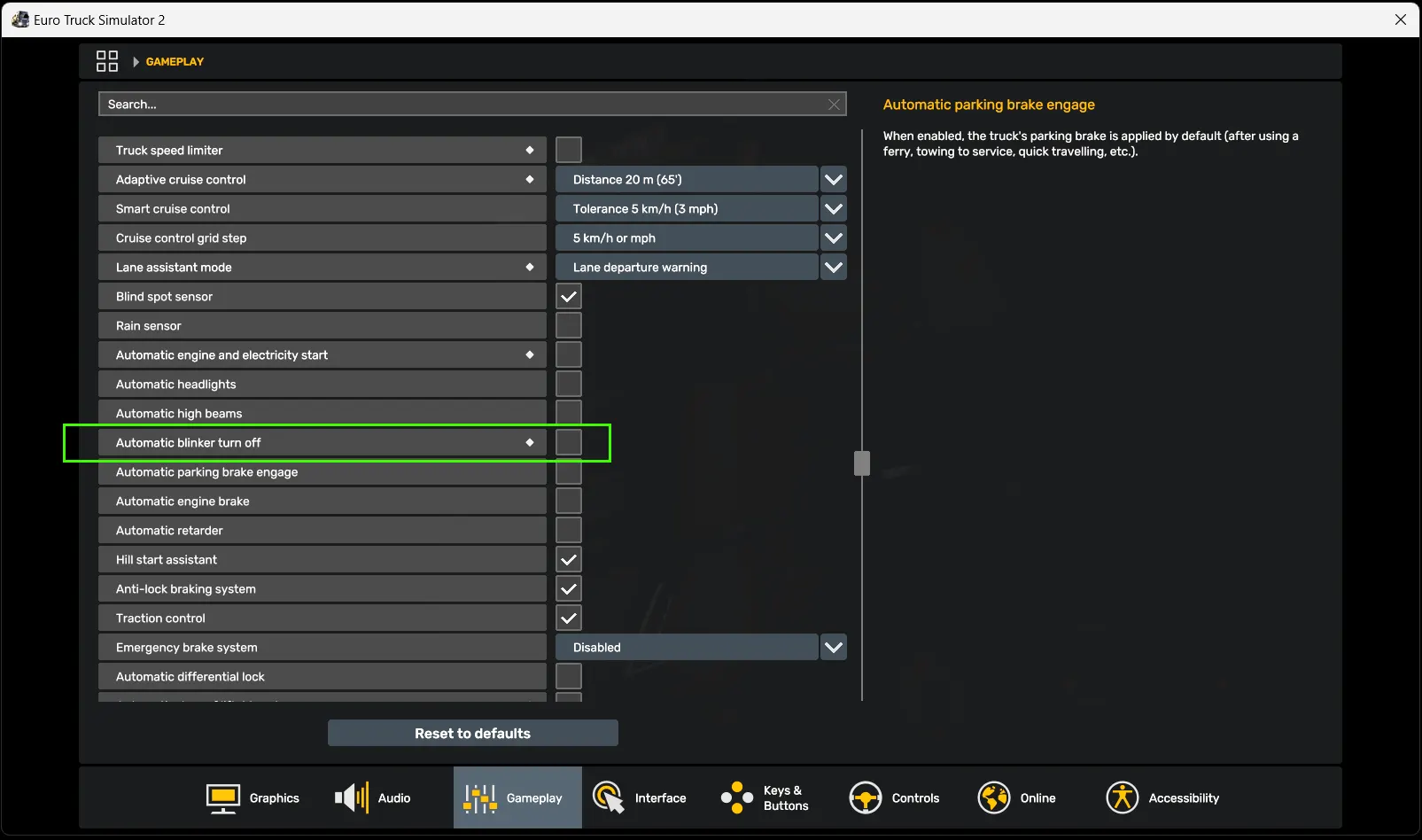

Game Settings

Please do not check this option in game settings

Connection Method

1. Air Brake H, M, and Q versions all use RJ11 connectors
2. Air brake modules can connect to V8 series control boxes: V8D-Q, V8DF, V8H, V8M, V8J
3. Air brake module is NOT compatible with V8i control box

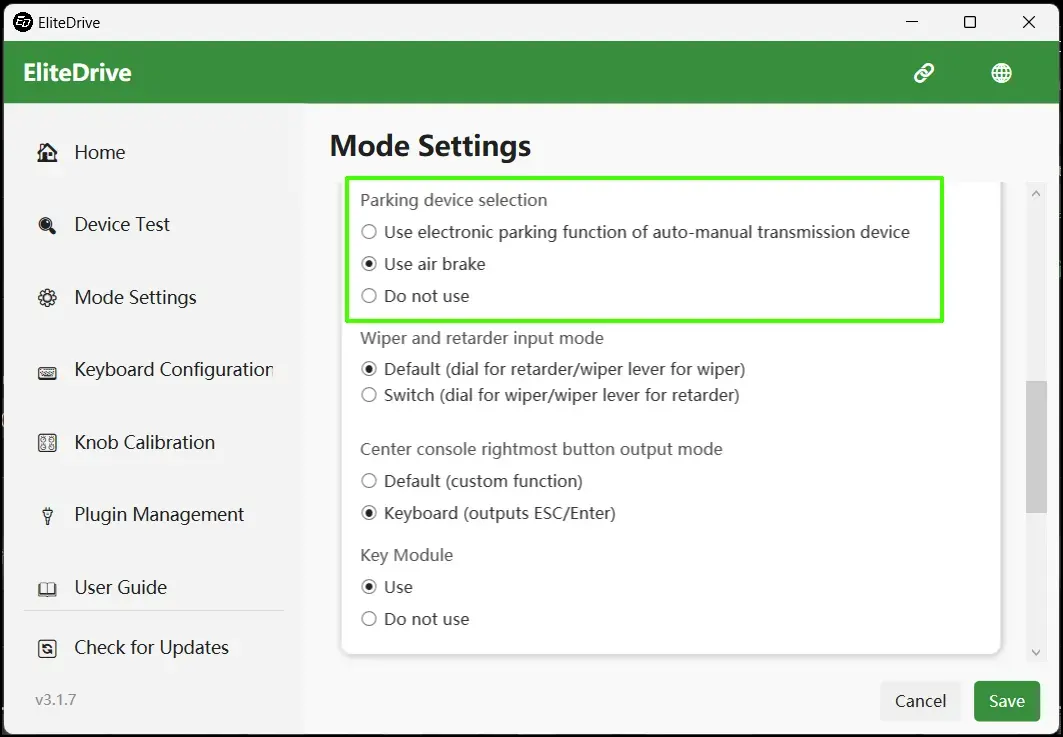

Usage Instructions

To use the air brake, select "Use Air Brake" in the driver's parking device settings

• Pull up handle - Lock parking brake, vehicle stops
• Q version air brake: Lift handle ring - Unlock parking brake, vehicle can move
• M version air brake: Pull handle head firmly to release from the slot - Unlock parking brake, vehicle can move
• H version air brake: Pull handle head firmly to release from the slot - Unlock parking brake, vehicle can move
