Headlight Module H Version

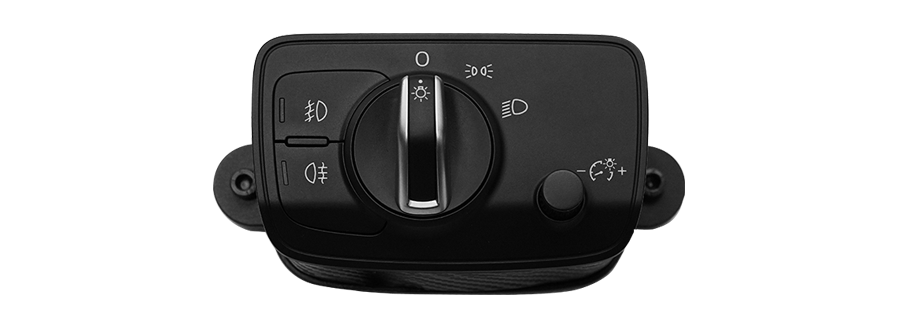

Module Overview

The Headlight Module H Version is a flagship light control module with rich features:

• Two-way status indicator sync - Hardware light status syncs with game
• Rich menu functions - Customizable button functions
• Compatible with 30+ games - Specifically designed and optimized
• Lower right dial - Requires calibration for proper use
• Headlight Module H Version connects to the control box via ribbon cable to the designated port (LIGHT)

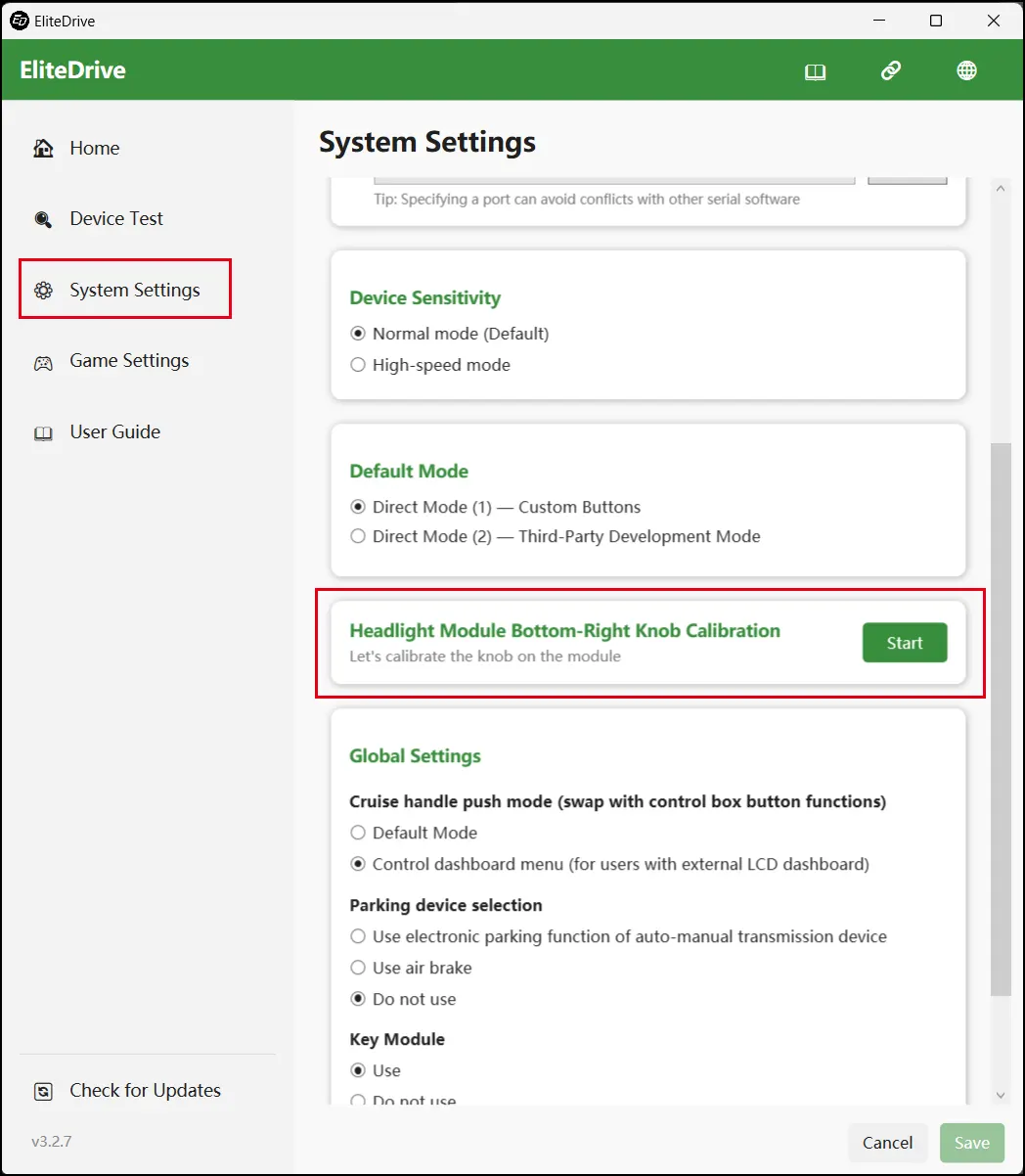

System Settings

The function dial in the lower right corner of the headlight module requires travel calibration to work properly

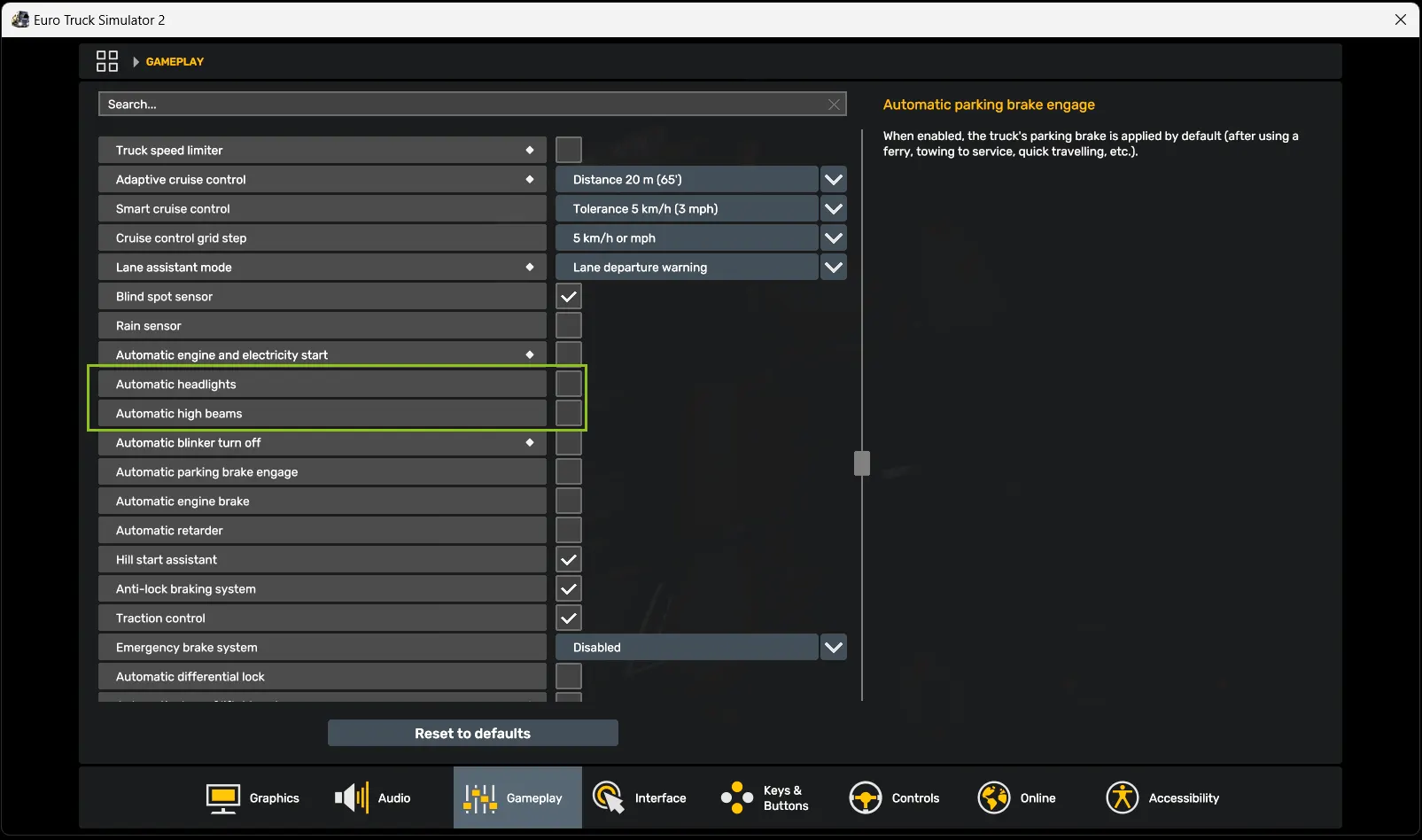

Game Settings

These automatic functions need to be disabled for proper operation

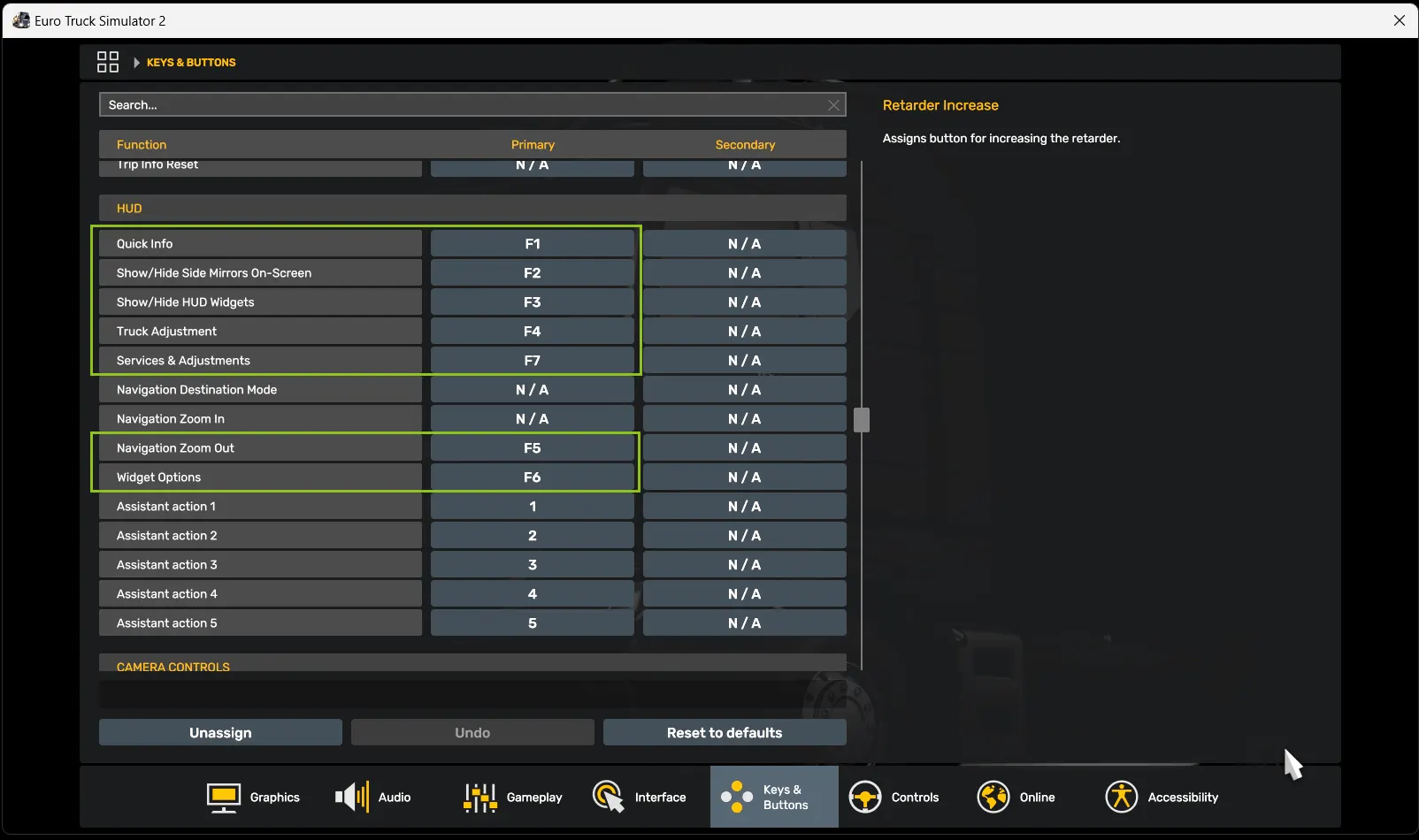

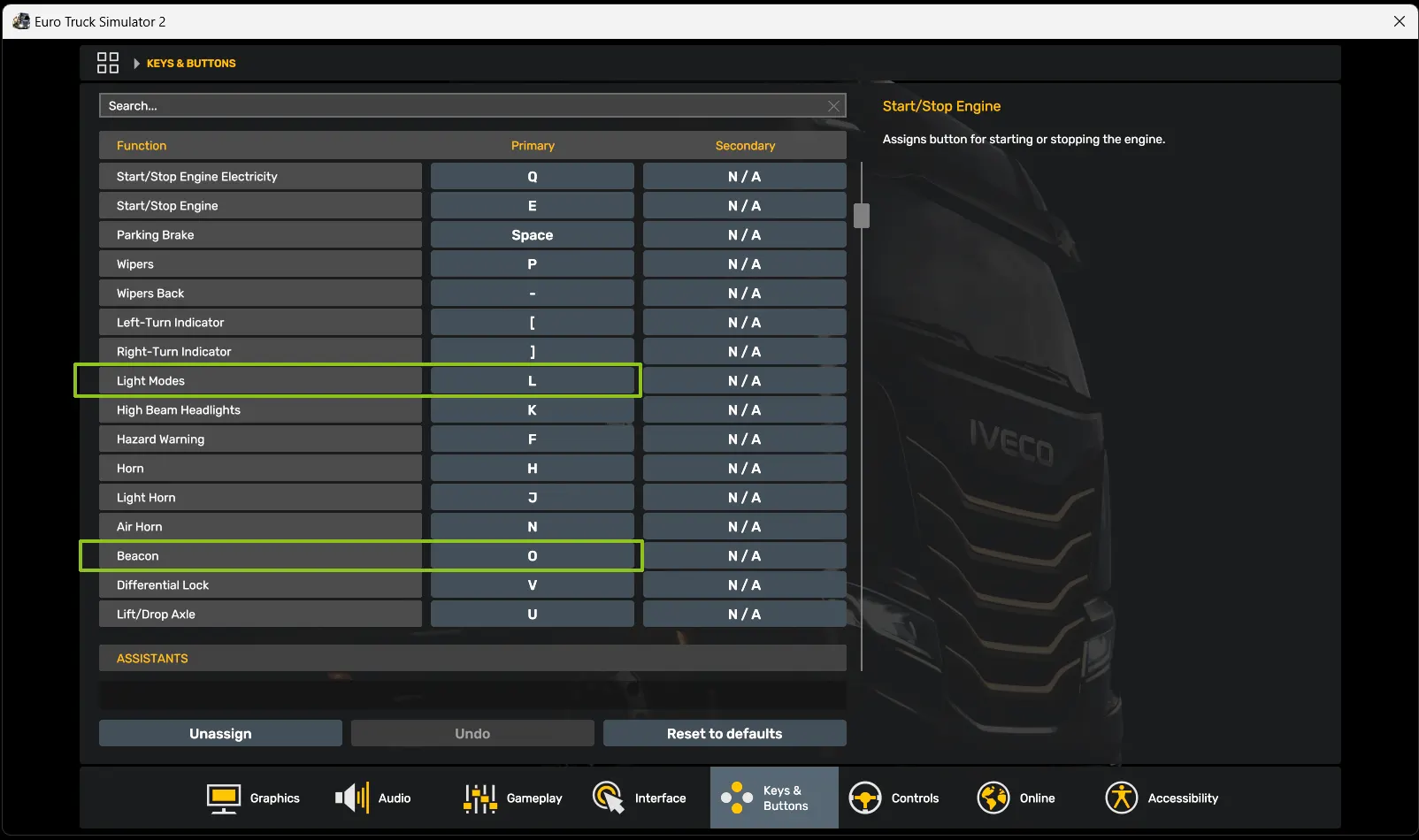

Verify Shortcuts

The headlight module requires corresponding shortcuts to function. It will not work properly without correct configuration (no binding needed, just use the game's default shortcuts)

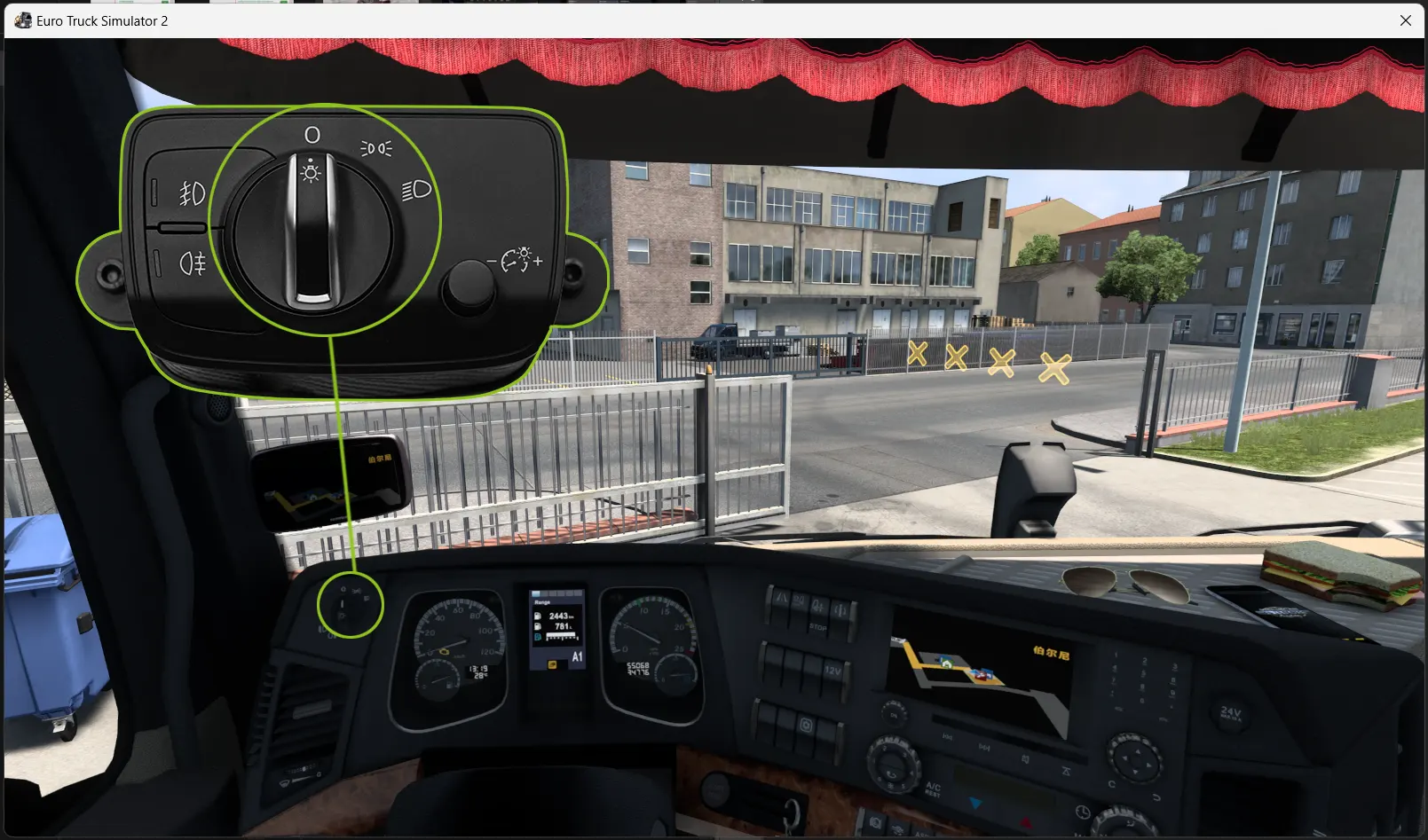

Headlight Switch

The headlight switch has three positions: OFF, position lights, and low beam (corresponding to in-game states)

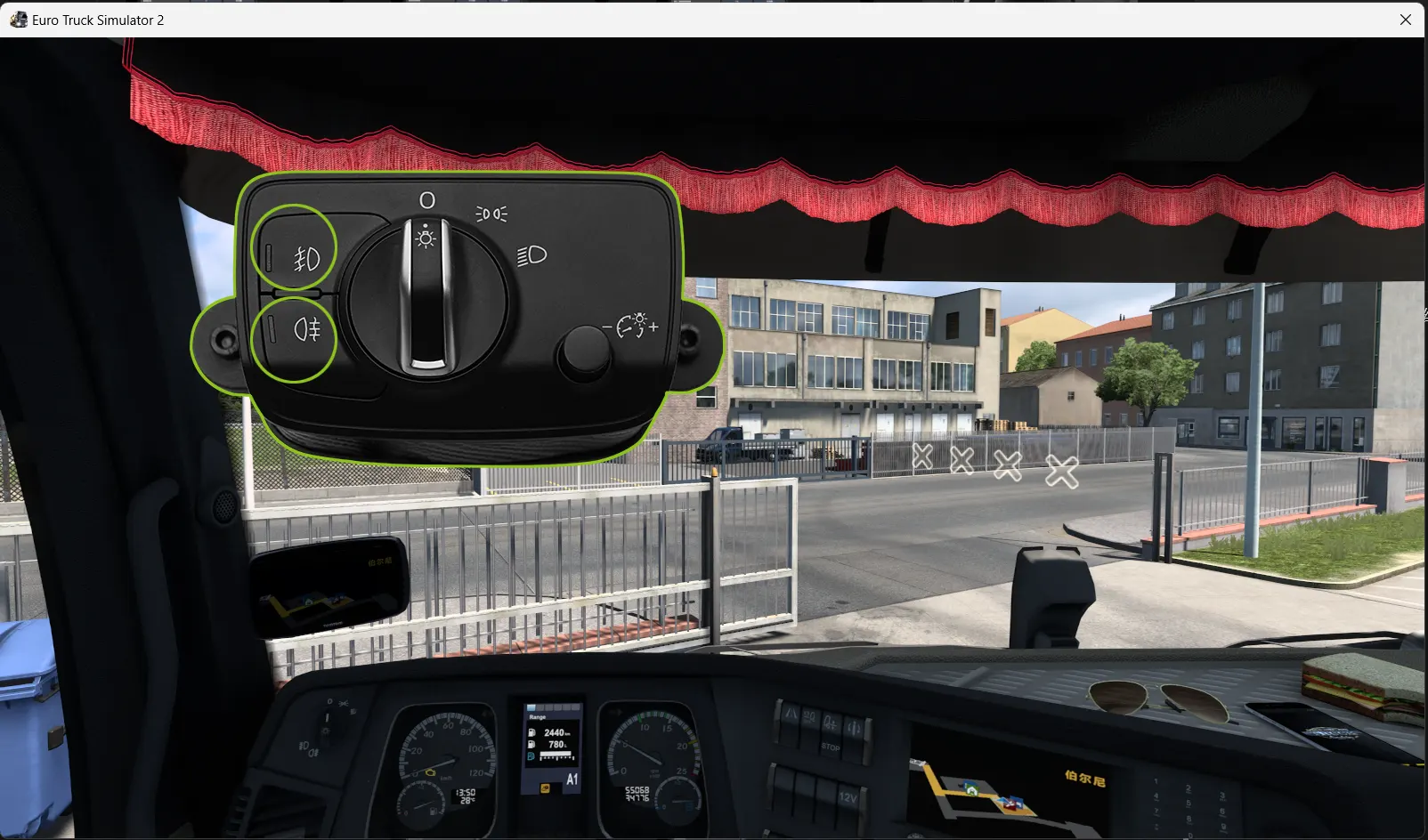

Fog Light Buttons

ETS2 and ATS currently don't have fog light functions, so we've assigned other preset functions to the front and rear fog light buttons. Users can disable this preset in the driver APP "Game Settings" and bind other functions

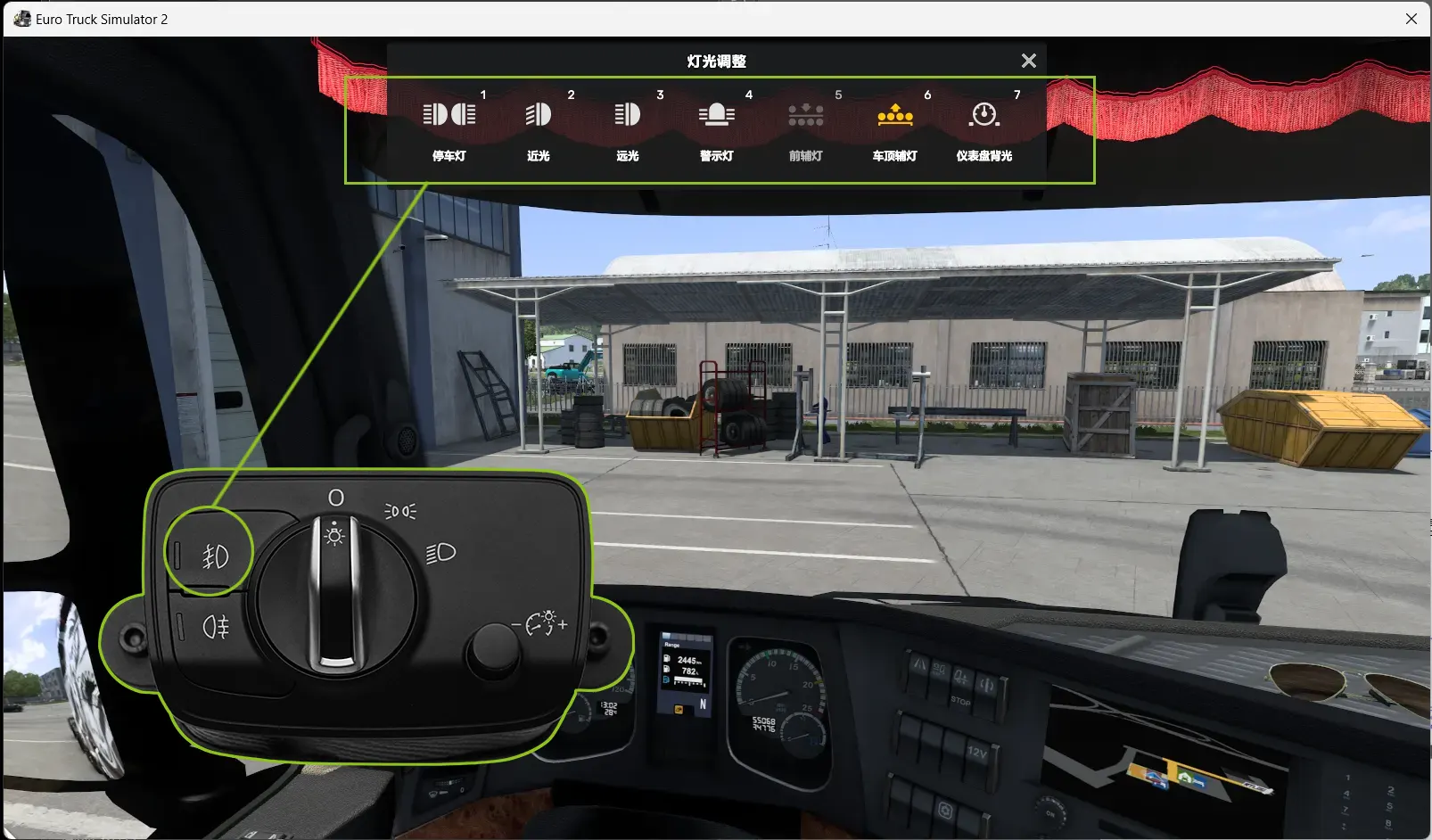

Front Fog Button Function

It activates the roof high beam by inputting a series of shortcuts (roof high beam needs to be installed at the modification shop)

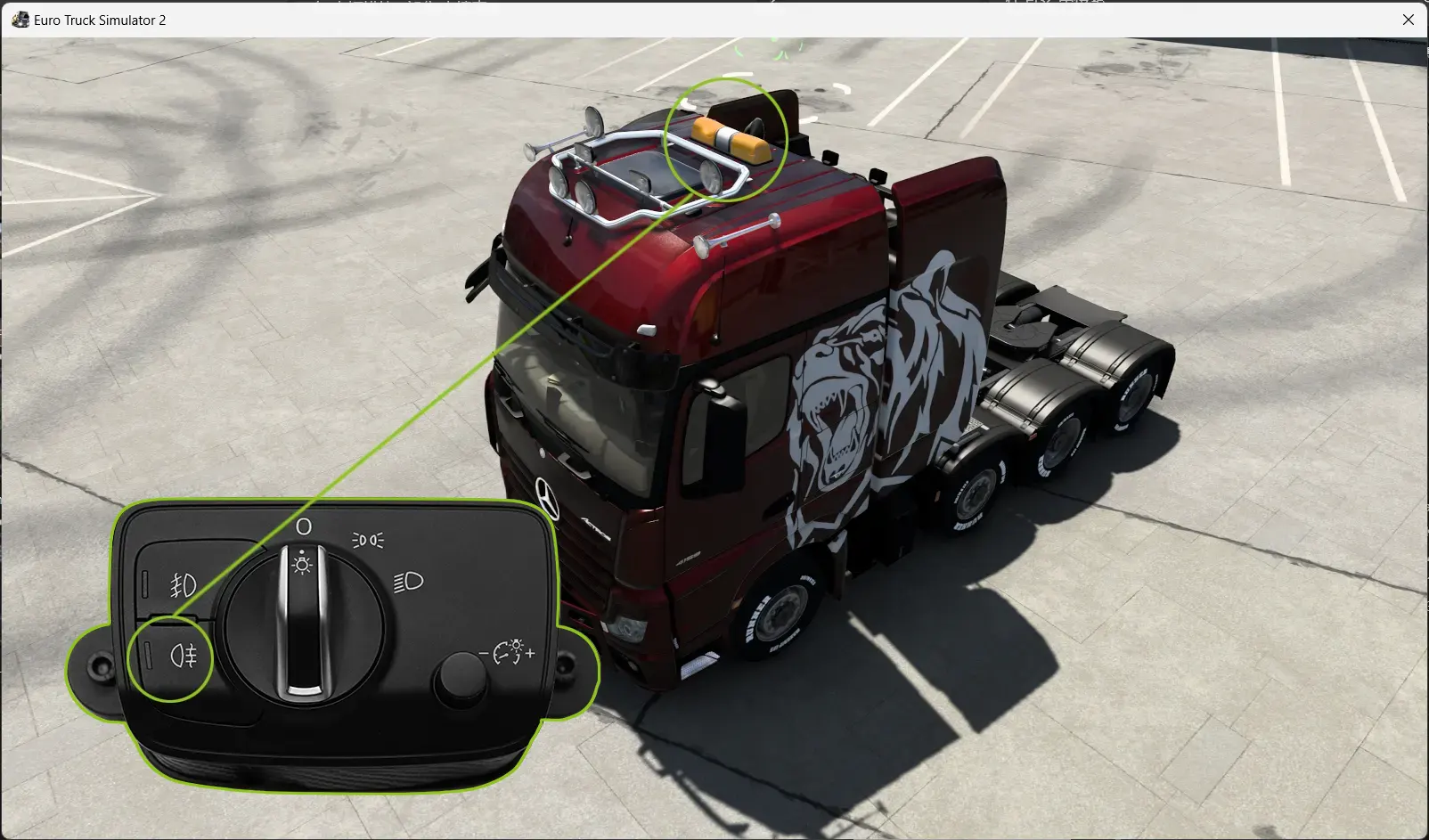

Rear Fog Button Function

Controls the roof warning light (this button lights up orange when the warning light is activated)

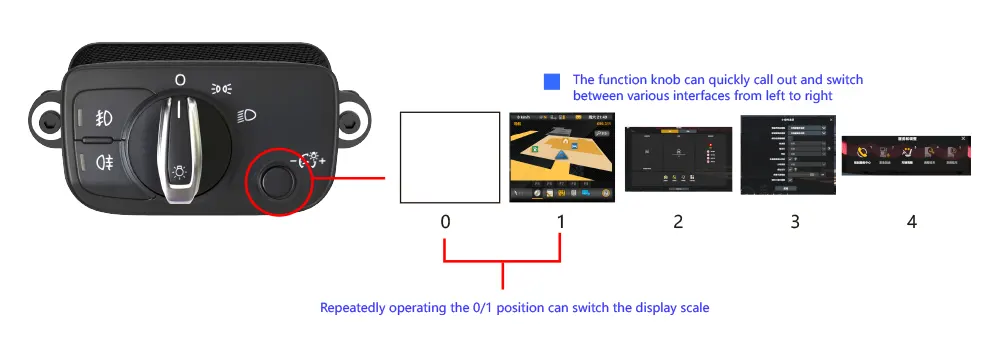

Dial Function

The dial can quickly open various game windows

Troubleshooting
