Glass Module

Module Overview

• Authentic button feel - Modified from real car parts
• Immersive experience - Enhances driving realism
• Easy installation - Two fixing screws easily install to profile
• Connection method - Connect module ribbon cable to control box Channel B port

The Window Mirror Module provides the following features in preset mode:
• 1 mirror adjustment mode button, 8 custom function buttons, 4 window control buttons
• Custom buttons can be configured for other functions according to user preference
• After entering mirror adjustment mode, the 8 custom buttons will automatically change output method to assist mirror adjustment
• 4 window buttons independently control driver and passenger windows

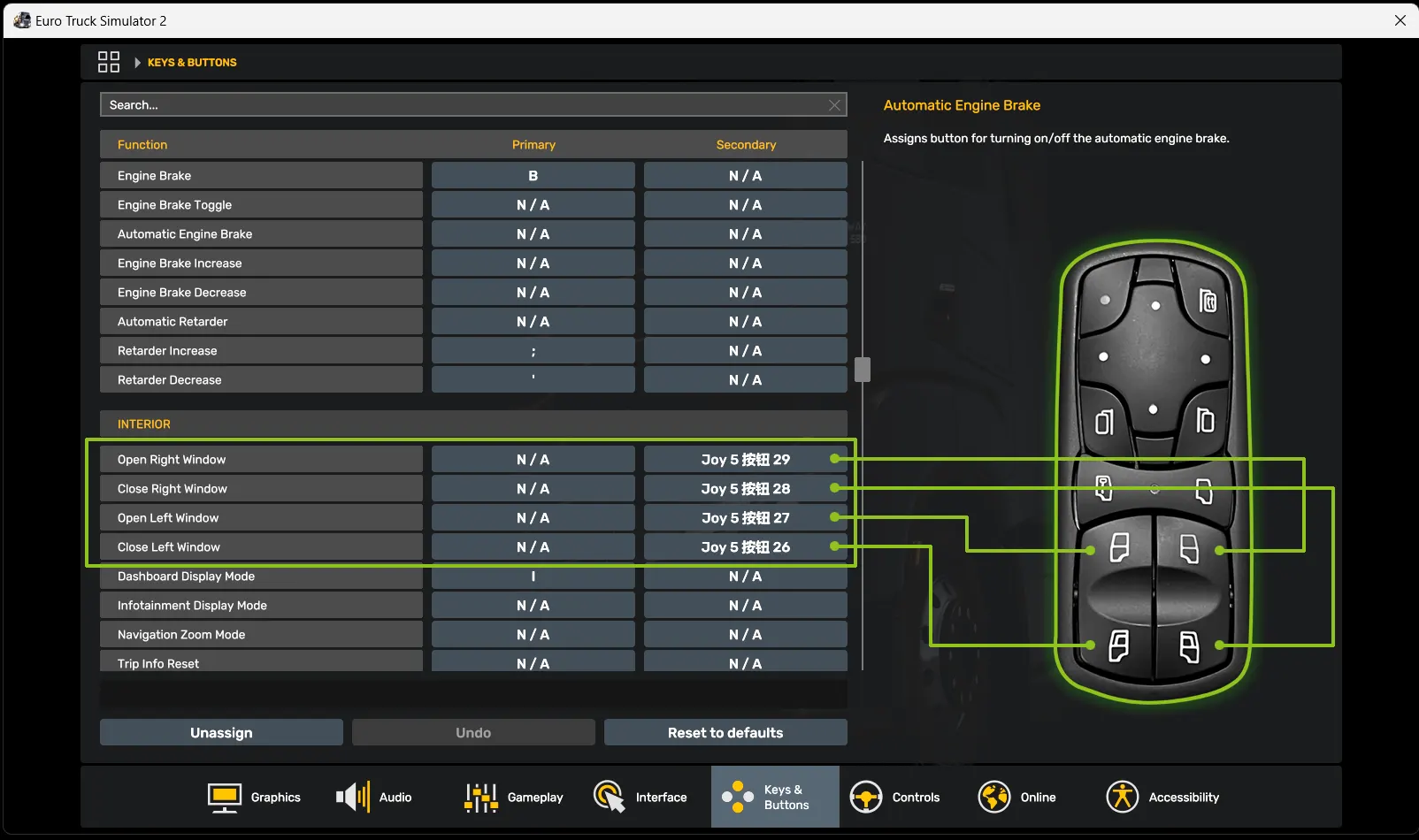

Function Binding

Since the game has no default window shortcuts, manual binding with our hardware is required

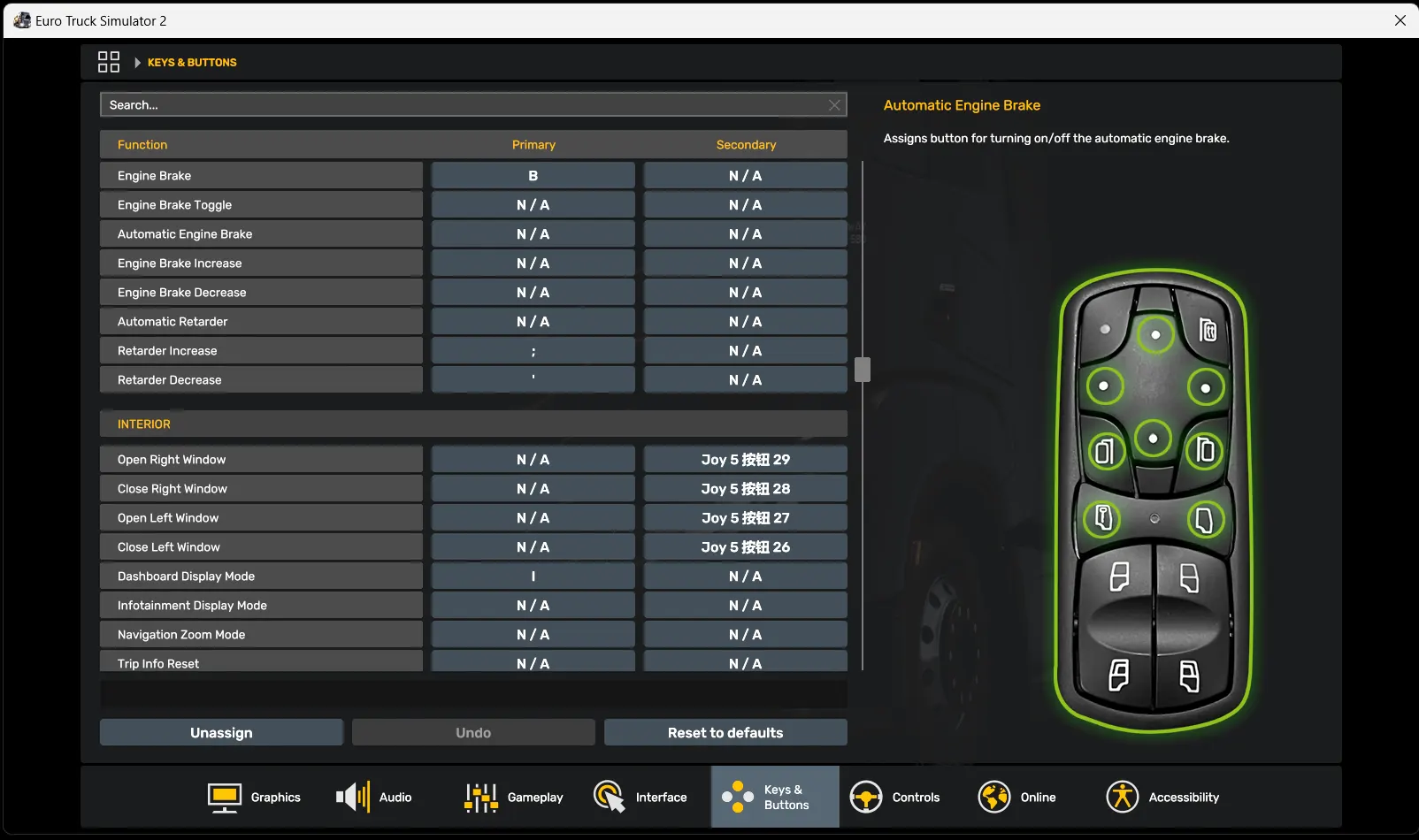

Custom Binding

These 8 buttons can be bound to functions by the user

Function Menu Button

This button can quickly open/close the game's mirror adjustment interface (not available in convoy mode)

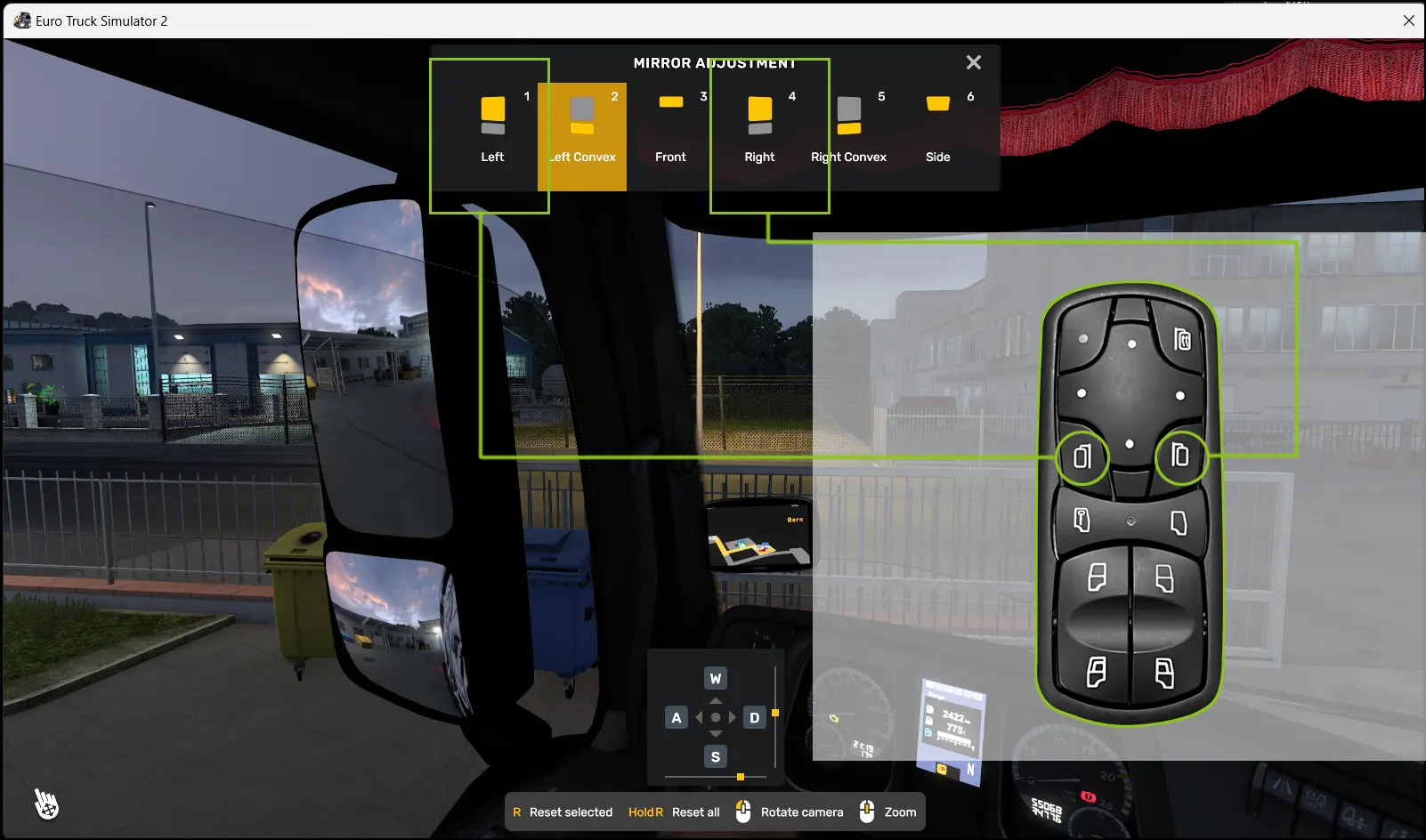

Main Mirror Button

This button can quickly select left/right main mirrors

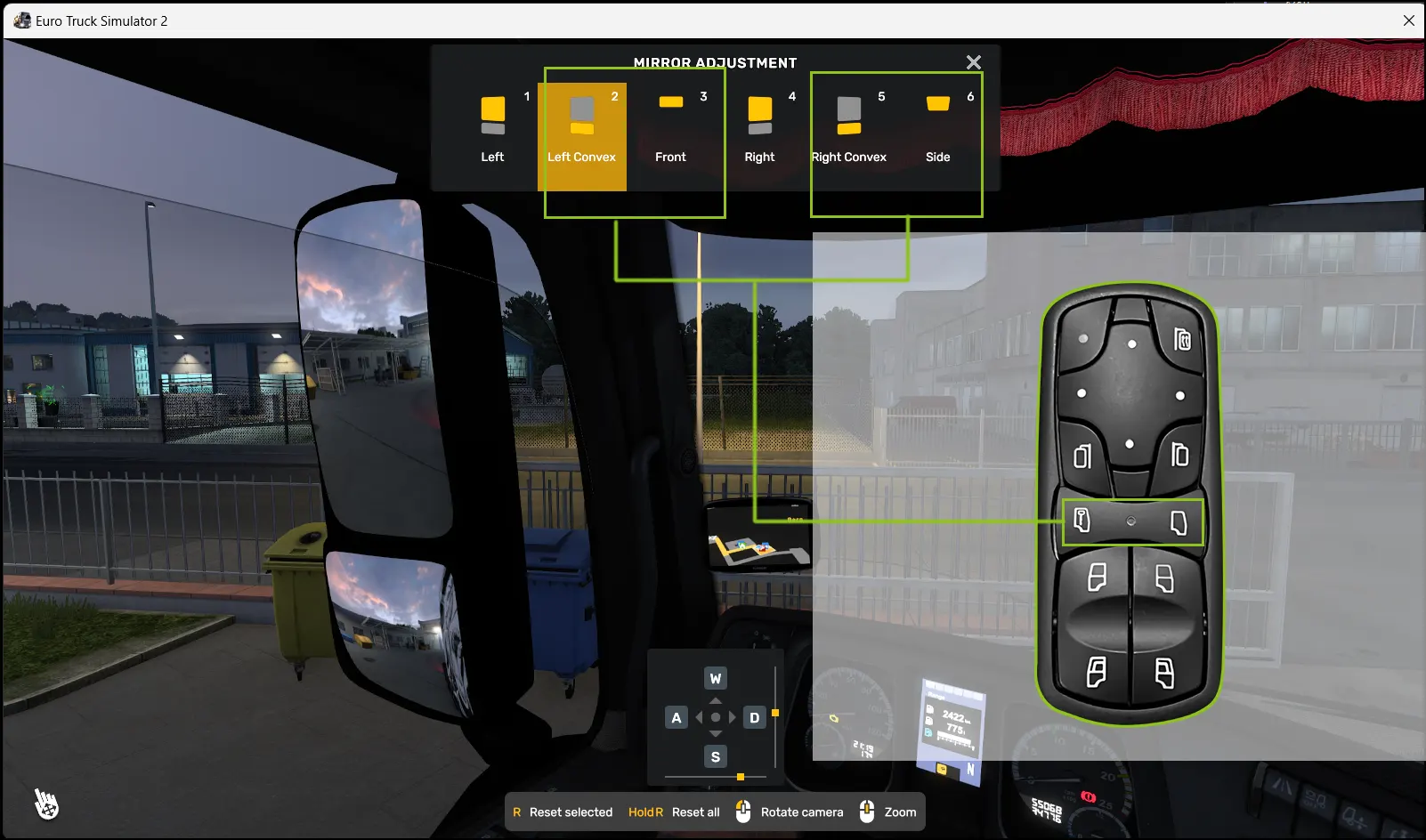

Auxiliary Mirror Button

This button cycles through auxiliary mirrors

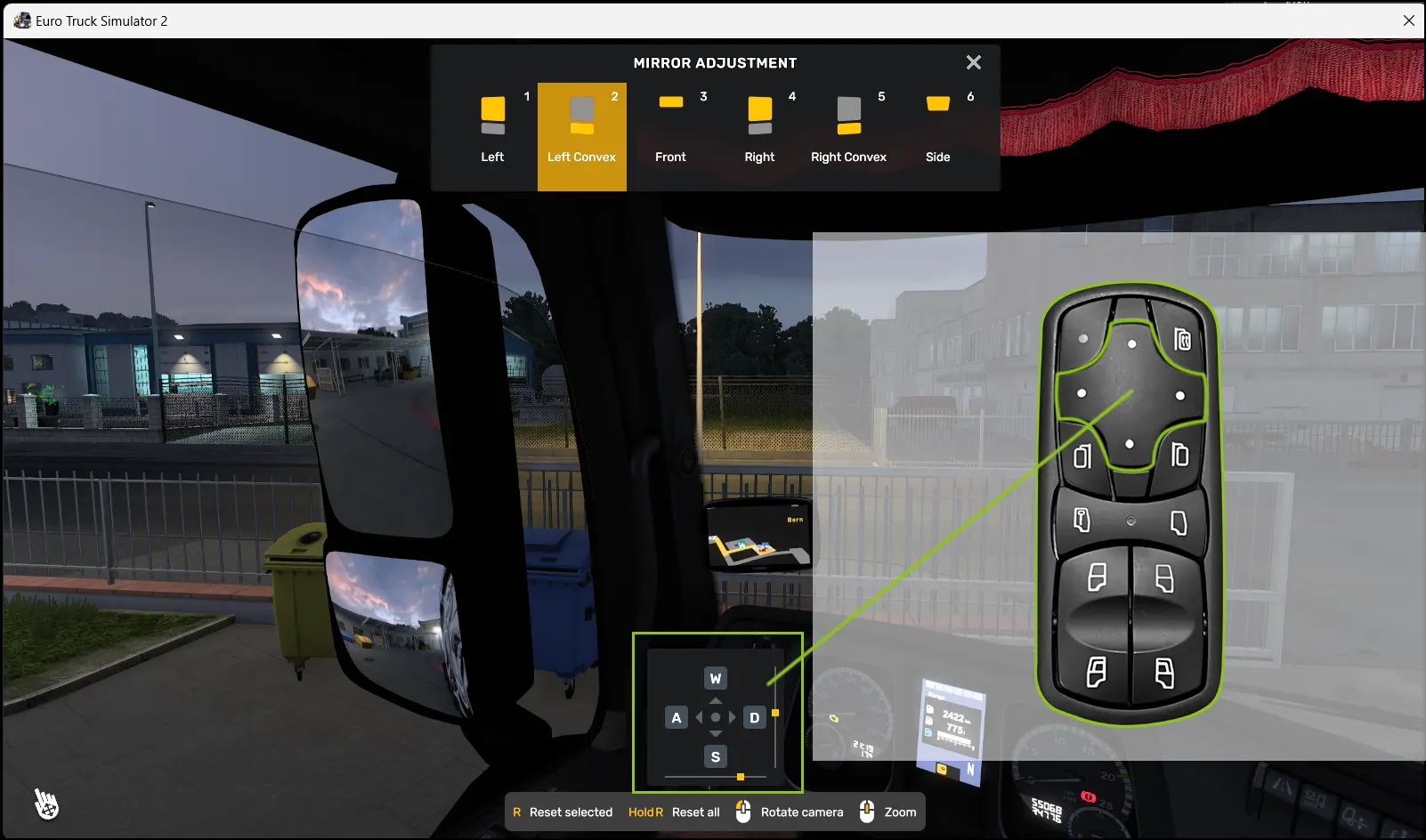

Direction Button

This button adjusts mirror angles

Reset Mirror Angle

Long press this button for 4 seconds to reset all mirror angles

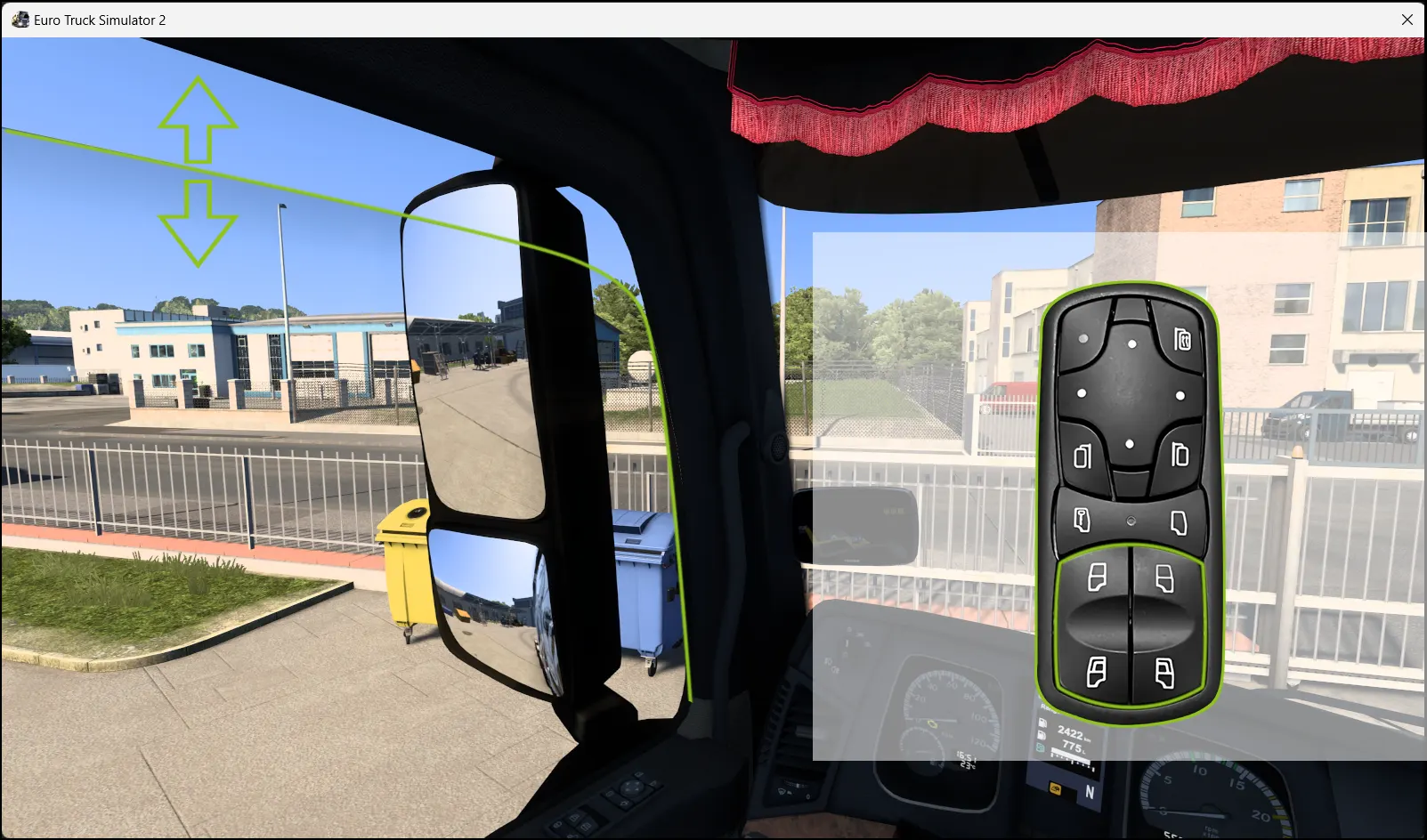

Window Button

This button controls left and right windows individually. Short press and long press have different effects

Troubleshooting
